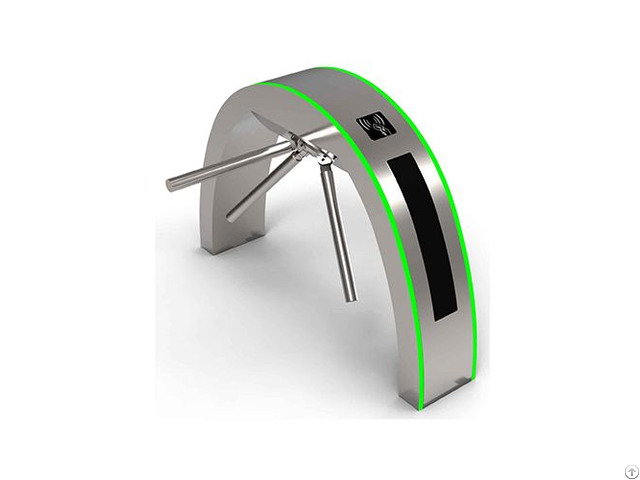

Tripod Turnstile Gate Jdgd 17 - China

Unique design tripod turnstile gate, automatic tripod barrier for crowd control solutions from Chinese automatic turnstiles manufacturer & supplier Tripod turnstile gate JDGD-17 is one of our morden- look crowd control solutions for securing entrances with high pedestrian flow, which is reliable, convinient and easy to use, and compatible with any validation system on the market (biometrics, fingerprints, QR scaner, facial recognition).

The LED notification lights are fixed onto both end to give notice of presented credential status to pedestrians, and any intrusion and tailgating attempts will activate alarm.

The advanced positioning technology is used to precisely control the movement position, ensuring the tripod turnstile gate runs more accurately and stably.

As an idea crowd control solution, the waist height access control turnstile JDGD-17 is suitable for any applications requiring effecitive crowd management such as office buidings, administrative buildings, athletic facilities, university facilities.

In addition, in case of emergency or power failure, the horizontal arm will collapse to allow a clear passage.

Tripod Turnstile Gate Features

1 - Integration possible with virtually any access solution

2 - Field configurable for single direction or bi-directional operation

3 - Regulates the flow of people with ease, even during the busiest periods of the day

4 - Safe, controlled rotation and self-centering arm rotation

5 - Free egress in emergencies or loss of power

6 - The passing time can be freely set, and it will be locked immediately after the predetermined time.

7 - Easy installation on finished floor surfaces, optional on unfinished surfaces

8 - Extremely versatile operational features

9 - functional, quick and space-saving

10 - Easy, safe and fast to use Tripod Turnstile Gate Applications

Athletic facilities

Cafeterias

Amusement parks

Stadiums

Office buildings

Residential area

Fitness center Tripod Turnstile Gate Parameters

Housing Material: 304 stainless sheet

Dimension: 1400 x 280 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 550mm

Arm Turning Angle: 120°

Pass Speed: 35~40 persons per minute

Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Arm drop when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor

G.

W: 65 kgs

Package: export standard carton
