Ac 803f Digital Thermostat - China

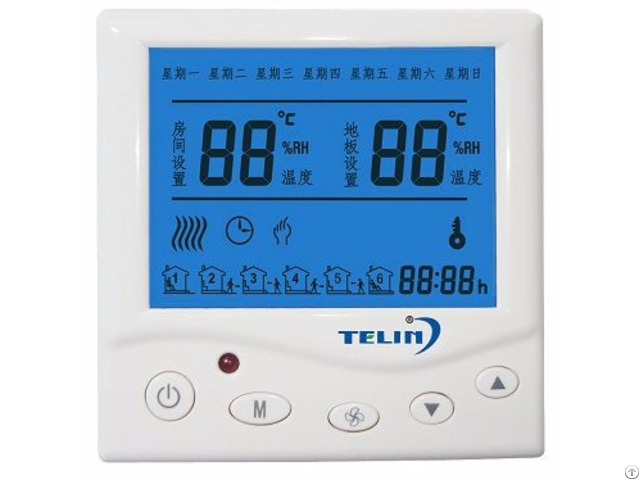

The AC803F series thermostats are stand-alone microprocessor based thermostats with LCD display.

The thermostats are designed to on/off control the fans, valves, dampers or electric heaters in fan coil units and heating applications.

● Attractive modern styling makes this ther mostatideal for locating in the occupied space ● Digital LCD display of room ambient temperature and user selected temperature setting on demand

● Adjustable heating/cooling/ventilati ng mode control

● Adjustable manual 3-speed or automatic fan speed control and on/off control output for valve

● Infrared remote control available(optional)

● Backlight function available(optional)

● Thermostat mounted directly onto a wall or standard junction box

● Model available for 24Vac, 85-260Vac, power input

● Reliable DC power supply by transformer

● Reliable output by relays Functions

● Mode: Cool, Heat and Vent.

● Room Temperature Setting ● Detect and Display Room Temperature ● Low Temperature Protection

● Manual/Auto Fan Speed Changeover

● Backlight Function Available(optional)

● Remote Control (Optional)

Sensor: NTC

Power supply: 220V/AC 50/60HZ

Rated Current: 3A

Set-point Range: 10∽30℃

Accuracy: at 25℃≤1℃

Measured Temperature: 1∽40℃

Power consumption: ≤1.5W

Shell: White PC plastic

Ambient Condition: -5℃∽55℃

Relative Humidity: <92%(no condensing)
