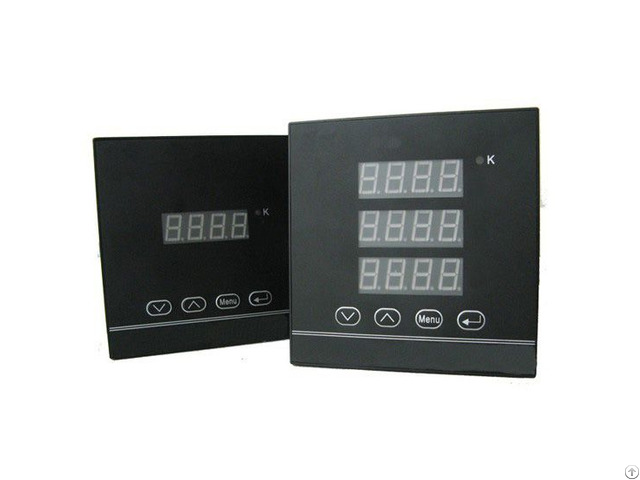

Digital Multifunction Power Factor Meter - China

In order to substitute the old style simulation

electric instrument, Blue Jay Electronic

devoleped the multifunction power factor

meter.

According to the different connection wiring, one meter can measure single-phase or

three-phase power factor, reducing

installation manpower and optimizing the

used one of spaces in the panel.

Specifications

Current and Voltage inputs (TRMS) Dielectric Strength

CT primary 10 000 A 2.5 kV at 50Hz for 1 min

CT secondary 1 and 5 A 1 and 5 A Communication (Option)

PT primary 500 000 VAC Link RS485

PT secondary 100VAC/400VAC Type 2 .

3 wires half duplex

Sampling Rate 2 per sec Protocol Modbus RTU mode

Impulse withstand voltage 4 kV MODBUS speed 4800/9600bauds

Accuracy 0.50% Analog Outputs (Option)

Auxiliary power supply Number of outputs 1 channel

AC voltage DC/AC 85~265 ± 30 % Type Isolated

Frequency 50 / 60 Hz Range 0 / 4 .

20 mA or 0-5V

Consumption < 10 VA Maximum current 30 mA

Front panel Alarm Outputs (Option)

Display Type Red LED Super Bright Display Number of relays 1 channel

Maximum Display 9999 Counts Type Passive nodes

Programmable 4 bottom to set value Weight

Polarity Indication "-" is indicated for negative input Approximate 250~400g

Case / Housing Material Environment

Installation Panel mounting Calibration 27°C ± 5°C

Terminal Block Operation 0 to 50°C, RH < 70%

Thermoplastic with Tin Plated

Brass Terminal Storage -10 to 60°C, RH < 70%

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
