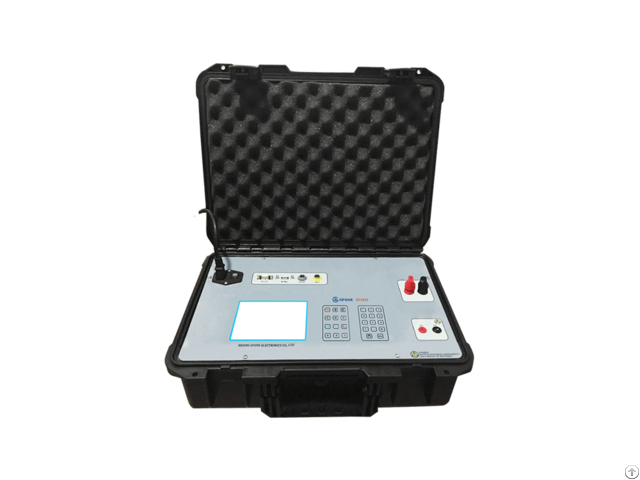

Gf1021 Single Phase Portable Energy Meter Test System - China

GF1021 single phase portable energy meter test system used to test single phase energy meter error.

Adopt mature signal synthetic and power amplifier technology, high precision voltage source and current source output.

Widely used in lab and field, and then as single phase standard source.

The portable meter test equipment offers high functionality combined with an excellent menu guided operation via coloured 7' touch screen or externally via interface.

FUNCTIONS

■ Measuring the distortion factor; ■ Testing AC voltmeter & Ammeter; ■ Vector representation of the measuring values; ■ Measuring mechanical meter and electric meter; ■ Testing power factor meter and frequency meter; ■ Testing energy meter error installations in 1P2W; ■ Measuring frequency, phase shift and power factor; ■ As high precision AC voltage source and current source; ■ Energy dosing with built-in current source and voltage source; ■ Harmonic spectrum analysis for voltage and current up to the 51th order; ■ Power and energy measurements for active, reactive and apparent power; FEATURES

■ Portable design; ■ Weight light 8Kg; ■ Accuracy class 0.05; ■ 7 inch TFT touch screen; ■ 0-120A, 0-500V, 40-70Hz; ■ Test by automatic or manual; ■ Start testing and creep testing; ■ Test 2pcs meter synchronously; ■ Recorder 1000 sets energy meter data; ■ Overload, short circuit, open circuit protection; ■ Automatic operation using predefined load points; ■ Reference standard and power source integrated;
