I2c Kc02s Repair Tester For Iphone 11 15 Battery - China

Description

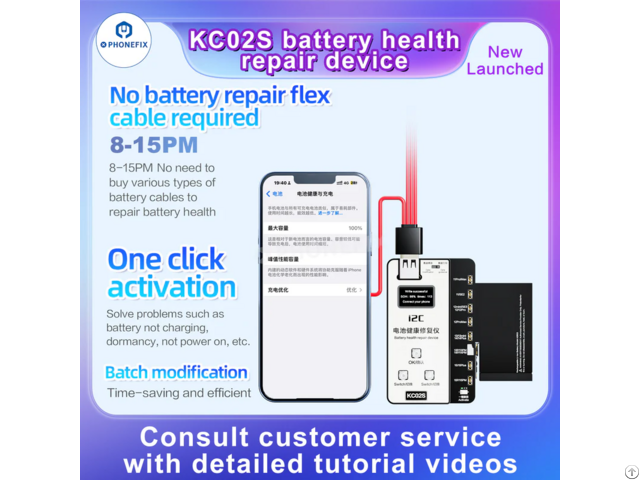

i2C KC02S Battery Repair Tester Modifies iPhone 11-15 Pro Max Battery Health Data Charging Cycles Without Battery Cable.

i2C KC02S battery health programmer resets 100% battery capacity and 0 cycle with one-click, removes the iPhone "Important Battery Message" pop-up, no external battery cable required.

W09 Pro V3 Tester Repair iPhone "Unknown Parts" Pop-up issue caused by non-genuine battery and reset the iPhone battery health data or cycle.

Features:

1 - i2C KC02S battery health repair device for iPhone 11-15 Pro Max battery data efficiency cycles modification.

2 - i2C KC02S box with iPhone 11-15 Pro Max boot cable, no battery repair flex cable required, 3 - Support iPhone 11-15 Pro Max battery activation with one-click, solve the iPhone battery not charging, dormancy, not power-on problems, ect.

4 - Support iPhone 11-15 Pro Max data guidance pop-up window.

5 - Operate without a computer, just use the KC02S box.

6 - Built-in 0.96-inch screen.

7 - Support batch modification mode, one-click batch modification.

iPhone Battery activation instructions:

1 - Connect the charging cable to the KC02S programmer.

2 - Buckle the battery to be activated to the corresponding holder according to the model.

3 - Press and hold the "Activation" button for 2-3 seconds, the LED will light up to indicate successful activation.

i2C KC02S operation:

Single modification mode:

1 - Attach the iPhone battery to KC02S.

2 - Press the confirm button to choose the single modification model to set the battery efficiency you want.

3 - Guidance pop-up window, push the KC02S switch from "data modification" to the "data guidance", use the boot cable to connect the iPhone motherboard and KC02S, turn on the iPhone, when the "unknown parts" appears, turn off the phone.

4 - When the "Important Battery Message" pops up, turn off the phone.

5 - Push the KC02S to "data modification", turn on the iPhone again to complete the efficiency setting.

Batch modification mode:

1 - Select the batch modification mode, set the efficiency that needs to be written in batches, and press the confirm button to write and save.

The KC02S device will save the set efficiency and number of charges.

When using it again, just press the write button to complete the batch modification.

2 - Repeat steps 3 and 4 of the single modification mode to complete batch modification.

Please Note:

1 - The i2C KC02S tester is only suitable for professional iPhone repair technicians.

It only modifies the battery health data and cycle of the iPhone battery after replacing the battery cell, but cannot change the real battery life efficiency.

2 - Not requiring a tag-on battery cable means that you don’t have to buckle it repeatedly every time.

It’s just convenient for setting parameters.

3 - The setting efficiency of the KC02S is only displayed on the iPhone battery settings, and it can't be synchronized with the machine inspection software.

4 - The one to four data cable and boot flex cable are not welded, and need to be welded by the users.
