J1158 Fine Pitch Spring Contact Probe - China
price: 8.00 Dollar US$
Product Description

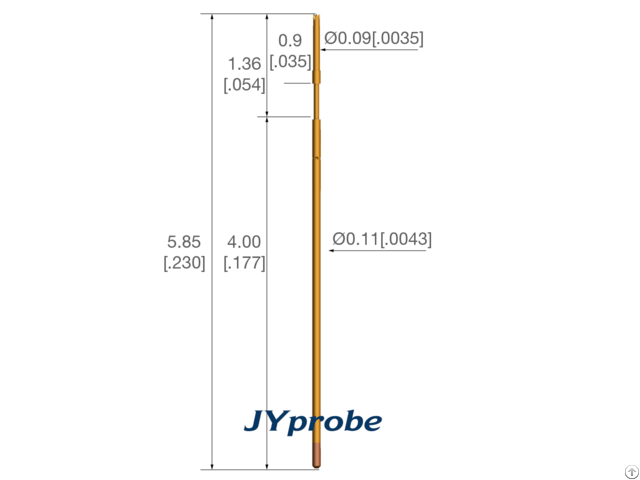

Pitch: 0.17mm(170um) Mechanical& Electronical Specification
Pitch 0.17mm[ 0.0067inch]
Working Stroke 0.3mm[ 0.0118inch]
Full Stroke 0.4mm[ 0.016inch]
Spring Force 4.5g at0.3mm[ 0.0118inch]
Resistance Max.
200mOhm
Current 0.8Amp
Operated Temperature -40~125°C
Material
TOP Plunger Beryllium Copper/ Au Plated
Bottom Plunger Beryllium Copper/ Au Plated
Spring Music Wire/ Au Plated
Tube G4/ EF Tube
Company Contact:
- Posted By: JY Electronics Technology Co Ltd
- Phone: 86-(0)21-3769 5886
- Address: No118, Lane 168 South Laiting Road,, Shanghai , China
- Email:
- Website: https://www.jyprobe.com
Published date: February 10, 2020 - Modified date: February 10, 2020
- Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).
JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.
As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
