Jl100 Long Test Probe - China

price: 0.50 Dollar US$

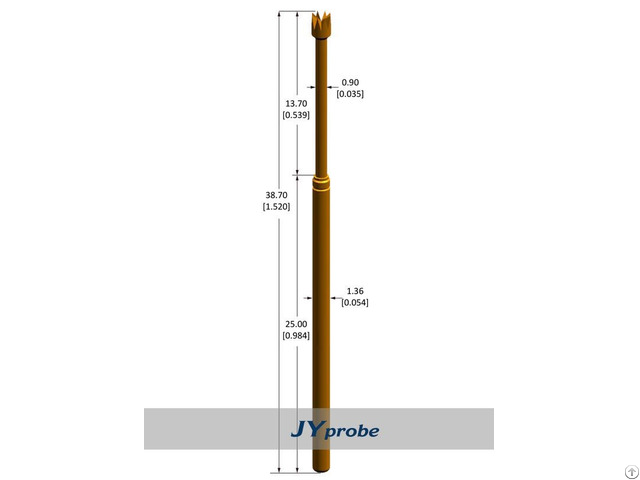

Jl100 Long Test Probe

Products Photos Catalog Jl100 Test Probe Photos Catalog

100mil Long test probe and receptacles Mechanical& Electronical Specification

Pitch 2.54mm[ 0.100in]

Working Stroke 9.00mm[ 0.3547in]

Full Stroke 11.50mm[ 0.453in]

Spring Force 1N 1.5N 2N 2.5N

Resistance Max.

50mOhm

Current 3Amp

Operated Temperature -40~125°C

Drilling Hole Size 1.702 - 1.753mm[.

0670 - 0690in] Material

Plunger SK4 or BeCu/ Au Plated

Spring Music Wire/ Au Plated

Tube Bronze/ Au Plated


Company Contact:


  • Phone: 86-(0)21-3769 5886

  • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

  • Email: Email


Published date: August 30, 2019

  • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

    JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

    As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
