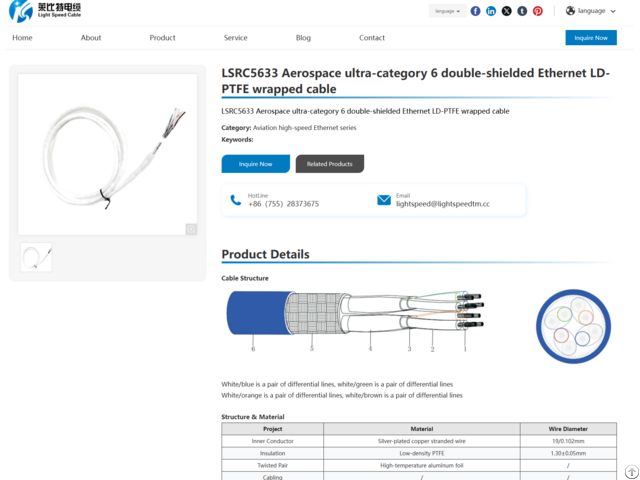

Lsrc5633 Aerospace Ultra Category 6 Double Shielded Ethernet Ld Ptfe Wrapped Cable - China

LSRC5633 Aerospace ultra-category 6 double-shielded Ethernet LD-PTFE wrapped cable Category: Aviation high-speed Ethernet series

Electrical & Physical Properties Impedance 100±15(Ohm)

Capacitance ≤45(pf/m)

Delay 4.30(ns/m)

Conductor to Conductor 1.5(KV/DC)

Conductor to Shield 1.0(KV/DC)

Minimum Bending Radius 56 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(℃)

Weight 52 (g/m) Frequency Attenuation db/65m Return Loss db Near-end Crosstalk Near-end Crosstalk Power Sum Equal-Level Far-end Crosstalk Equal-Level Far-end Crosstalk Power Sum Delay MHz IL RL NEXT PS NEXT EL FEXT PS EL FEXT DL 4 3.8/4.5 23.0 66.3 63.3 56.0 53.0 552 8 5.3/6.2 24.5 61.8 58.8 49.9 46.9 547 10 5.9/6.8 25.0 60.3 57.3 48.0 45.0 545 16 7.5/8.5 25.0 57.2 54.2 43.9 40.9 543 20 8.4/9.8 25.0 55.8 52.8 42.0 39.0 542 25 9.4/11.0 24.3 54.3 51.3 40.0 37.0 541 31.25 10.5/12.3 23.6 52.8 49.9 38.1 35.1 540 62.5 15.0/18.6 21.5 48.4 45.4 32.1 29.1 539 100 19.1/24.8 20.1 45.3 42.3 28.0 25.0 538 200 27.6/33.9 18.0 40.8 37.8 22.0 19.0 537 250 31.1/37.4 17.3 39.3 36.3 20.0 17.0 536 300 34.3/41.3 17.3 38.1 35.1 18.5 15.5 536 400 40.1/48.1 17.3 36.3 33.3 16.0 13.0 536 500 45.3/54.3 17.3 34.8 31.8 14.0 11.0 536
