Mining Air Compressor Wireless Multi Parameter Tester - China

Model: CKD9W

Description: CKD9W Mining Air Compressor Wireless Multi-Parameter Tester

MA: MFA170063

Patent No.

ZL 2012 2 0322610 - X Introduction:

1 - Inspect coal mining/non-coal mining centrifugal/piston/screw type air compressor performance

2 - High precision measurement for exhaust temperature, exhaust pressure, wind speed, power parameters.

3 - Test the actual displacement, shaft power, exhaust efficiency, specific power parameters.

4 - Provide safe performance inspection and regular maintenance for air compressor.

Features:

1 - Software cloud synchronization.

2 - Easy to process, animation interaction.

3 - Good design, wireless, networking transmission.

4 - High precision measurement.

5 - Scalable wind speed, accurate positioning.

6 - Report one-key share.

Production Structure:

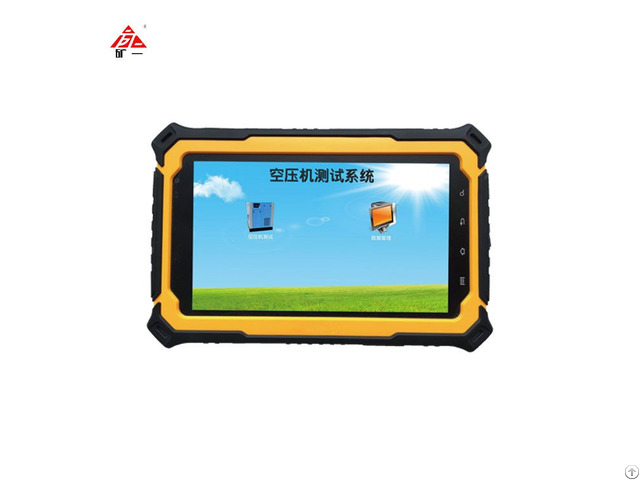

1 - KJD3.7 mining intrinsic safe tablet (MAB160279)

2 - GWSP85/100/1200 mining intrinsic safe wireless temperature, humidity, atmospheric pressure sensor (MFB190092)

3 - YJAV500/750 mining flameproof and intrinsic safe current/voltage collector (MAB140813)

4 - GPD1.5W mining intrinsic safe wireless pressure sensor (MFB170068)

5 - GFD30W (A) mining intrinsic safe wireless wind speed sensor (MFB170057)

6 - GWD250W mining intrinsic safe wireless temperature sensor (MFB170054) Parameters: Parameters Basic parameters Range Resolution Error

First level exhaust temperature (℃) 0～80.00 0.01 ±0.20

其他范围 ±0.4 80.00～250.00 0.01 ±0.50 Second level exhaust temperature (℃) 0～80.00 0.01 ±0.20 80.00～250.00 0.01 ±0.50 First level exhaust pressure (MPa) -0.100～1.500 0.001 ±0.2%FS

Second level exhaust pressure (MPa) -0.100～1.500 0.001 ±0.2%FS

Atmospheric pressure (hPa) 100.00～1200.00 0.01 ±0.40

Wind Speed (m/s) 0.20～20.00 0.01 ±0.20 20.00～30.00 ±0.30

Environment temperature (℃) -40.00～85.00 0.01 -25.00～50.00, ±0.20 Other range, ±0.30

Environment Humidity (%RH) 0.00～100.00 0.01 0.00～80.00, ±2.00 Other range, ±4.00 Voltage (V) 0.0～750.00 0.01 ±0.2%FS

Current (A) 0.0～500.00 0.01 ±0.2%FS

Power (kW) 0.0～750.00 0.01 ±0.5%FS

Exhaust Quantity (m3/min) 0.0～9999.9 0.1 Truth value ±1.0% Auxiliary instruments:

1 - YWSD70/100 mining temperature and humidity detector

2 - YSD130 (A) coal mining sound level meter

3 - CZY1 Mining Portable Vibration Meter

4 - CHD1200 Mining Intrinsic Safe Resistance Meter
