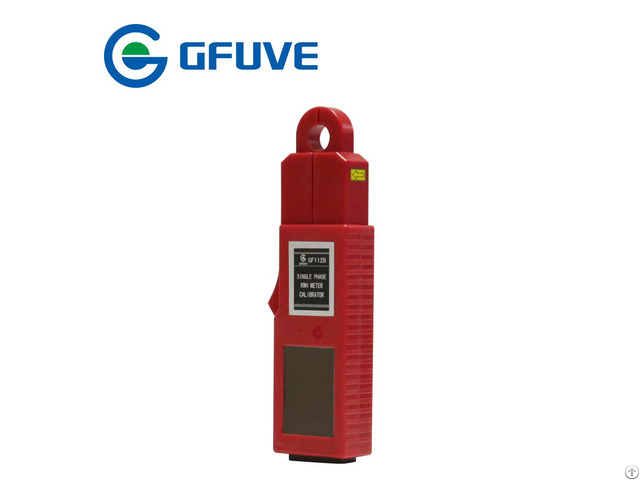

Portable Single Phase Kwh Meter Calibrator Gf112b - China

FEATURES

■ Easy and user friendly operation; ■ Micro-multifunction optical sampler; ■ Unique long-term and temperature stability; ■ One screen displays all the measured parameters; ■ Displayed by colorful and 2.8 inch touch TFT LCD; ■ The AAA Li-battery can work 20 hours continuously; ■ Oscilloscope function display current & current wave; ■ The meter and current clamp have Integration design; ■ Automatically record and save 1000 groups calibrate data; ■ 16 bit high accuracy AD switch 32 bit ARM processor core; ■ Manually/automatically test electric single phase kWh meters; ■ Manually/automatically test inductive single phase kWh meters; ■ Testing parameters: active power, phase angle of voltage/current and frequency etc; ■ With wide voltage measuring range 0 -300V and current measuring range 0.001-120A; ■ The current clamp has automatic compensation and calibration function with accuracy class 0.2%; APPLICATION

■ Metrological service center; ■ Power engineering company; ■ Distribution power corporation; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Electrical Department of property company; ■ Electricity meter quality supervision department; ■ Electrical Department of industrial and mining enterprises; GF112B Single Phase kWh Meter Calibrator is uesd to test various types single phase kWh meters error on site and also can be used to test alternating current parameters - U, I, P, Q, S, F, E etc.
