The Gf302d3 Portable Three Phase Energy Meter Test Bench - China

FEATURES

■ Min current output 1mA; ■ 4 quadrant measurement; ■ Predefined multiple load points; ■ User friendly menu guided operation; ■ Verification of the energy registration; ■ 1P2W, 1P3W, 3P3W, 3P4W can be set; ■ Reference meter and power source integration; ■ Easy verification and analysis of meter installations; ■ Automatic operation without need of an external PC; ■ Verification of the load conditions on metering installation; ■ Programmable many kinds of testing energy meter schemes; ■ Automatic testing mechanical meter and electronic meter error; ■ Generation of harmonics in current and voltage up to the 63nd; ■ Voltage, current, frequency, phase angle, power factor, harmonics can be regulated; ■ Vector diagram display and phase sequence indication on integrated colored screen; ■ Especially configured USB stick for storage of customer data and measurement results; APPLICATION

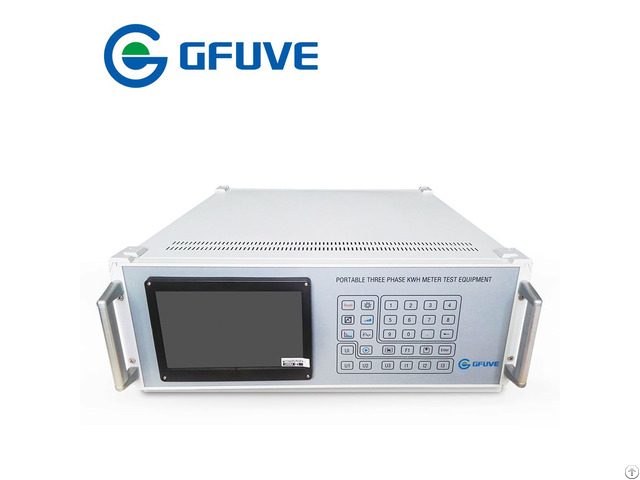

■ Power plant; ■ Electrical laboratory; ■ Energy meter R & D; ■ Watt-hour meter factory; ■ Metrological service center; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Electrical Department of industrial and mining enterprises; The GF302D3 portable three phase energy meter test bench consists of an integrated three phase 120A current source and 600V voltage source and a class 0.02 three phase electronic reference standard meter.

The energy meter test bench is particularly designed for analysis of complete metering installations and local mains conditions.

The meter test bench offers high functionality combined with an excellent menu guided operation via built-in thirty keys and colored 7" touch LCD-display.

It can auto & manual test all kinds of energy meter error.

Using on site or in the laboratory.

It can preset a variety of test schemes for testing energy meter.
