Um 4 Handheld Portable Ultrasonic Thickness Gauge Tester Meter - China

price: 820.00 Dollar US$

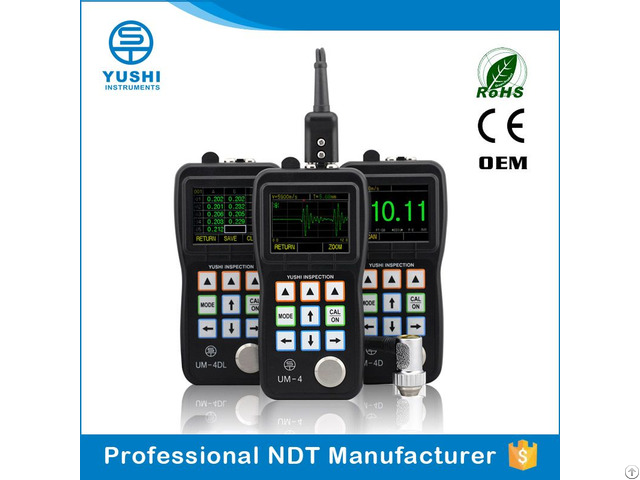

Um 4 Handheld Portable Ultrasonic Thickness Gauge Tester Meter

Products Photos Catalog Handheld Portable Photos Catalog

YUSHI INSTRUMENTS：We Are Manufacturer

20 years NDT experience, ISO, CE & RoHS certificated, this is how we keep superior quality and competitive offers for global valued customers

This instrument can be widely used in the fields such as manufacturing, metal processing, chemistry and business inspecting for measuring the thickness of all sorts of materials where ultrasonic wave can spread through with a constant speed and get the reflection from the back side

Probes/Transducers Option: PT-08/04/06/12, GT-12, ZT-12, TC110/210/705

Display Type: 2.4'' color OLED, 320×240 pixels, contrast 10, 000: 1

Operating Principle: Pulse echo with dual elemet transducers

Measuring Range: 0.025’’ to 20.00’’ (depends on material, probe and surface condition)

Measuring Resolution: 0.001’’ or 0.01’’

Units: Inch or Millimeter

Gain: Low, Medium or High for varying test conditions

Display Mode: Normal, Minimum/Maximum capture, DIFF/RR%

V-Path Correction: Automatic

Refresh Rate: 4Hz, 8Hz or 16Hz

Material Velocity Range: 0.0197 to 0.3939 in/μs

Languages: English, Chinese, Japanese, French etc

Alarm Settings: Minimum and Maximum alarms.

Range of 0.010'' to 20.00’’.

Dynamic waveform color change on alarm

Operating Time: Approximately 40 hours with two AA batteries

Instrument Shut-off: ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity

Operating Temperature: 14°F to 122°F

Size: 6‘’ × 3‘’ × 1.5‘’ (H × W × D)

Weight: 280g including batteries

Battery and Couplant are Prohibited Goods by Air

Shipping by DHL taking 3-5 days

What’s in the BOX?

1*Main Unit, 1*Probe, 1 * Carrying Case, 1* User Manual


Company Contact:


  • Phone: +8618842591572

  • Address: No.9 Shenbei Road, Shenbei District , shenyang , liaoning , China

  • Email: Email


Published date: January 4, 2017

  • Business Description: Ultrasonic Thickness Gauge, Leeb Hardness Tester, Ultrasonic Flaw Detector, Black-White Densitometer, LED X-Ray Film Viewer
