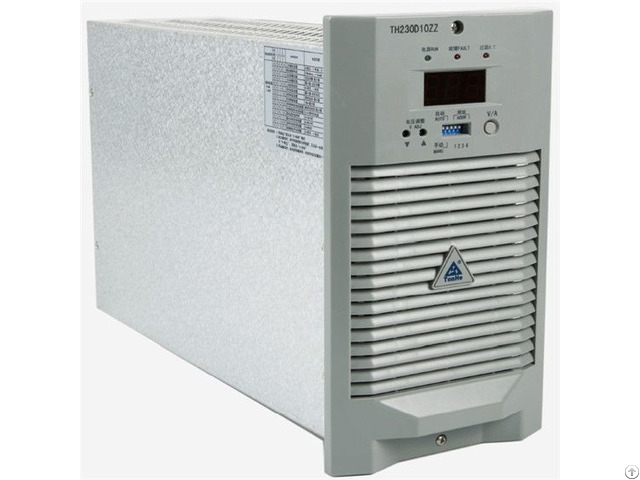

220v 10a 3000w Switch Mode High Frequency Power Supply Electric Rectifier - China

Model No: TH230D10ZZ-3G

1 - Cooling method: natural cooling

2 - Net weight：9kG

3 - Dimension: 230mm*130m m*325mm(H*W*D, exclude plate)

4 - Working temperature: -10degree centigrade～40degree centigrade

5 - AC input voltage(TH230D10ZZ-33): 38 0VAC(-15%～20%) three phase AC input voltage(TH230D10ZZ-3G-415 ): 415VAC(-15%～15%) three phase

6 - DC output voltage: 176～300VDC

7 - DC output current: 10A

8 - Power factor: ≥0.93

9 - Efficiency: ≥95%


10 - Voltage stabilization accuracy: ≤±0.5%

11 - Current stabilization accuracy: ≤±1%

12 - Ripple: ≤0.5%

13 - Noise: ≤55dB

14 - Current sharing imbalance for modules in parallel: ≤±3%

15 - Protocol & Interface: TH or Modbus/RS485
