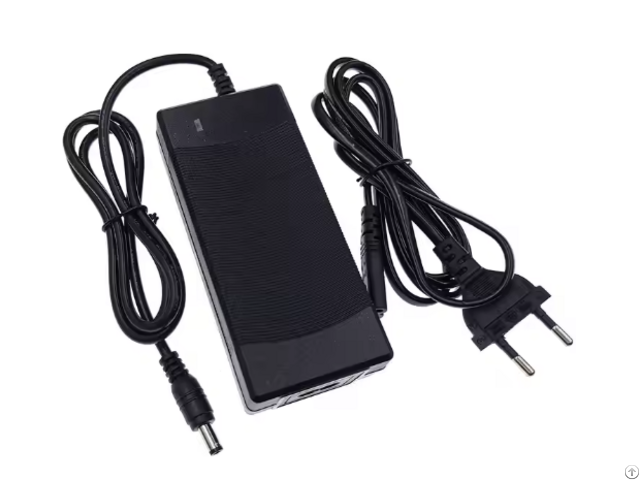

42v 2a Smart Lithium Battery Charger 5 5x2 1mm - China

42V 2A Charger Specifications Input: AC 100-240V 50/60Hz Output: DC 42V 2A Connector Port: DC 5.5 x 2.1mm or DC 5.5 x 2.5mm Compatible Battery: Only Fit for 36V Lithium-ion Battery NOT COMPATIBLE: NOT fit for 3-Prong Connector; NOT fit for 24V, 25.2V, 29.4V version.

Compatible Model: Compatible with GOTRAX Apex, Apex Pro, Glider, XR Elite, XR Ultra, Rival with 36V Lithium-ion Battery Compatible Model:

Compatible with GOTRAX GXL V2, G2, G3, G3 Plus, G4 with 36V Lithium-ion Battery Compatible Model:

Compatible with Meepo MINI 2/MINI2 ER/MINI 2S/MINI 2S ER/MINI 5/V3/V3S/V3 ER/V3S ER/MINI 3S/V5/NLS PRO/AWD PRO Skateboard Board with 36V Lithium-ion Battery

Please Notice

Usage Process

1 - Check the voltage and connector of your battery.

2 - Connect the charger to AC, LED turns GREEN.

3 - Connect DC output to Battery.

LED turns RED means fast charging.

4 - LED turns GREEN from RED means battery full charged.

5 - Disconnect the charger from AC and battery.

If your scooter is not charging, it may be for one of the following reasons: 1 - The charger is not compatible with your scooter.

2 - Your battery is damaged due to the limited life of lithium batteries.

If your battery has been used for more than 12 months or has not been used for 2-3 months, your battery may be damaged.

3 - If the green light is on when you plug in the charger, but when you connect the scooter, the green light does not turn red but stays on and the charger does not work.

This is because the positive and negative (+/-) connectors of our charger do not match the positive and negative (+/-) connectors of your scooter and your scooter has no power, you can try to connect the charger to your scooter from a different connector.

4 - If the green light is on when you plug in the charger, but goes off when you connect the scooter, it's because the internal short circuit of the scooter has caused the self-protection function of the charger to fail, you'd better check the scooter battery and replace it.

5 - Don't use for Lead Acid battery.
