Ami Meter Supplier - China

1 - Brief Introduction This is one of latest AMI system solution which combines almost all kinds of wireless communication, including Zigbee, PLC, GPRS and Wifi.

IVY provides you the whole solution including smart meter, DCU and AMI system.

It integrates remote reading, control and analysis function.

This is the answer to your specific needs: from the reliable commercial meter to the complex measuring device with comprehensive additional functionality for advanced data acquisition and flexible tariff control.

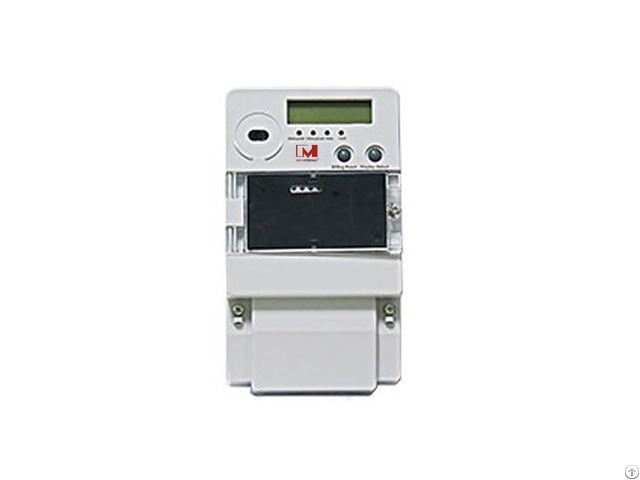

2 - Technical Parameter 1P Suspension Meter

Parameter Characteristic

Meter Type Single phase smart meter

Wiring Single phase 2 wire

Accuracy Active 1.0, reactive 2.0

Operating voltage 230+/-10%

Rated current 5(45)/5(100)

Rated frequency 50Hz

Power consumption 0.97W/3.07VA

Communication Int.

Infrared, RS485, PLC, Zigbee, GPRS

Technical standard IEC62052-11: 2003, IEC62053-21: 2003, IEC62053-22: 2003, IEC62053-23: 2003

DLMS/COSEM

Suspension Meter Working environment

Normal operating temp: -10℃~+55℃

Max.

operating temp: -25℃~+60℃

Storage&transport temp.

-25℃~+75℃

Storage&operating humidity: <95%

Protection IP54

Overall dimension 221.3*126.6*71mm 3 - Function Description Measuring Devices Additional auxiliary power supply to assure data reading during power down phases

Power quality monitoring functions with alarm and log features

Real-time alarm system

Measure and display current date and time; kWh; kvarh; Maximum kW and kvar demand; Cumulative kW and kvar demand; Instantaneous active and reactive power; Instantaneous voltage current and power factor.

Time of use metering: the smart meter can be programmable to record import and export energies (kWh and kvarh) and import and export demand (kW and kvar) on different rates.

Load profile function: the smart meter is able to record 15-minute three decimal points load profile data with 4 channels consisting total import kW, total import kvar and total export kvar demand.

Measuring Devices meter registration: the smart meter can be registered with Data Concentrator Unit (DCU) of AMI Central System(consisting of Meter Data Management System (MDMS).

Head End System and relevant systems and accessories) automatically.
