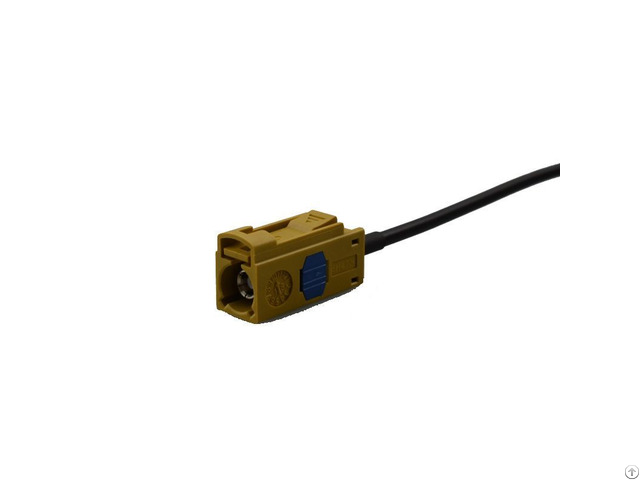

Auto Fakra Antanna Adapter Cable

FAKRA Connectors and Cable Assemblies support applications that require a high-performing, reliable, and cost-effective RF connector.

FAKRA connectors are standard SMB Connectors embedded within a special inter-locking plastic housing that uses multiple color-codes for easy identification and mating, and are designed to perform up to 4GHz at 50 Ω.

MAJOR CHARACTERISTICS

characteristic impedance: 50Ω

Temperature range: -45℃～+85℃

(The lower end of the wiring cable shall prevail)

Design structure and technical parameters:

RF coaxial connector: FAKRA SMB connector

Material:

Inner conductor: Brass, Gold-plated

Insulating medium: PTFE

Outer conductor: Brass, Nickel-plated

Electrical and mechanical properties: characteristic impedance: 50Ω

Frequency range: 0-4GHz

Medium Pressure: 1000V (60s)

Contact Resistance:

Inner conductor≤6mΩ Outer Contact≤1mΩ Insulation Resistance: 1000MΩ V.S.W.

R≤1.3 (DC-4GHz)

Insertion loss: ≤-15dB(0-4GHz)

Connectors mechanical life: ≥500 cycles

(frequency 12 cycles/MIN)

RF coaxial cable: RG174

Material: Inner conductor: Bare copper (7/φ0.16±0.003mm)

Dielectric: PE(φ1.52±0.05 mm)

Outer conductor:

Bare copper braided wire(80*φ0.10 mm)

Jacket: PVC(φ2.8±0.10 mm)

Physical electrical performance

Min Bent radius: 30mm

Max voltage: 1500 VMS

Temperature scope: -20℃～+80℃

Component overall specification requirements

Appearance:

Connector

Connector surface coating is uniform, no copper exposure, scratch (slight scratch is allowed but the metal under the coating shall not be exposed), oxidation, fracture, insulation deformation and other phenomena.

Cable

The cable is flat, smooth and without damage.

No serious scratch is allowed.

Cable assemblies

The surface of the cable assembly shall be clean, free from dirt and bruises; Welding should be flat, no cracking, copper exposure and other phenomena; Reliable welding.
