Compact Sfp Csfp Remark Iso9001 2008 Iso14001 2004 Tuv Ul Ce Rohs Fda Fcc - China
price: contact company for price
Compact small form- factor pluggable CSFP transceiver and a compact
small form- factor CSFF transceiver supports network systems, especially
those deploying single- fiber bidirectional transceivers in high density
applications.
The CSFP MSA defines a transceiver mechanical form- factor
with latching mechanism and a host board, SFP- like, electrical edge
connector and cage.
The CSFF MSA also defines a transceiver mechanical
form- factor.
The dual- channel CSFP has the same mechanical dimensions
as the industry- standard SFP transceiver and is compatible with the
standard SFP cage.
The single- channel CSFP and CSFF are half the size
of the industry- standard SFP and SFF packages.
The CSFP design is
modular to enable configurations of integrated 2ch modules.
In future
Eotpolink will develop 4ch CSFP modules.
These highly integrated compact
transceiver modules will enable network system vendors to increase port
density and data throughput, while reducing network equipment cost.
Package Part No.
Data Rate ( TX/ RX) Wavelength ( TX/ RX) Distance DDM Case Temperature range
CSFP option2 EOLCS- BI1603- 10- LC 155M/ 155M 1490nm/ 1310nm 10km D Comm
CSFP option2 EOLCS- BI1603- 10- CL 155M/ 155M 1310nm/ 1490nm 10km D Comm
CSFP option2 EOLCS- BI1603- 20- LC 155M/ 155M 1490nm/ 1310nm 20km D Comm
CSFP option2 EOLCS- BI1603- 20- CL 155M/ 155M 1310nm/ 1490nm 20km D Comm
CSFP option2 EOLCS- BI1612- 10- LC 1.25G/ 1.25G 1490nm/ 1310nm 10km D Comm
CSFP option2 EOLCS- BI1612- 10- CL 1.25G/ 1.25G 1310nm/ 1490nm 10km D Comm
CSFP option2 EOLCS- BI1612- 20- LC 1.25G/ 1.25G 1490nm/ 1310nm 20km D Comm
CSFP option2 EOLCS- BI1612- 20- CL 1.25G/ 1.25G 1310nm/ 1490nm 20km D Comm
CSFP option1 EOLCS- BI1603- 10- LC1 155M/ 155M 1490nm/ 1310nm 10km D Comm
CSFP option1 EOLCS- BI1603- 10- CL1 155M/ 155M 1310nm/ 1490nm 10km D Comm
CSFP option1 EOLCS- BI1603- 20- LC1 155M/ 155M 1490nm/ 1310nm 20km D Comm
CSFP option1 EOLCS- BI1603- 20- CL1 155M/ 155M 1310nm/ 1490nm 20km D Comm
CSFP option1 EOLCS- BI1612- 10- LC1 1.25G/ 1.25G 1490nm/ 1310nm 10km D Comm
CSFP option1 EOLCS- BI1612- 10- CL1 1.25G/ 1.25G 1310nm/ 1490nm 10km D Comm
CSFP option1 EOLCS- BI1612- 20- LC1 1.25G/ 1.25G 1490nm/ 1310nm 20km D Comm
CSFP option1 EOLCS- BI1612- 20- CL1 1.25G/ 1.25G 1310nm/ 1490nm 20km D Comm
CSFP option2 EOLCS- BI1603- 10- LCI 155M/ 155M 1490nm/ 1310nm 10km D Indust.
CSFP option2 EOLCS- BI1603- 10- CLI 155M/ 155M 1310nm/ 1490nm 10km D Indust.
CSFP option2 EOLCS- BI1603- 20- LCI 155M/ 155M 1490nm/ 1310nm 20km D Indust.
CSFP option2 EOLCS- BI1603- 20- CLI 155M/ 155M 1310nm/ 1490nm 20km D Indust.
CSFP option2 EOLCS- BI1612- 10- LCI 1.25G/ 1.25G 1490nm/ 1310nm 10km D Indust.
CSFP option2 EOLCS- BI1612- 10- CLI 1.25G/ 1.25G 1310nm/ 1490nm 10km D Indust.
CSFP option2 EOLCS- BI1612- 20- LCI 1.25G/ 1.25G 1490nm/ 1310nm 20km D Indust.
CSFP option2 EOLCS- BI1612- 20- CLI 1.25G/ 1.25G 1310nm/ 1490nm 20km D Indust.
CSFP option1 EOLCS- BI1603- 10- LCI1 155M/ 155M 1490nm/ 1310nm 10km D Indust.
CSFP option1 EOLCS- BI1603- 10- CLI1 155M/ 155M 1310nm/ 1490nm 10km D Indust.
CSFP option1 EOLCS- BI1603- 20- LCI1 155M/ 155M 1490nm/ 1310nm 20km D Indust.
CSFP option1 EOLCS- BI1603- 20- CLI1 155M/ 155M 1310nm/ 1490nm 20km D Indust.
CSFP option1 EOLCS- BI1612- 10- LCI1 1.25G/ 1.25G 1490nm/ 1310nm 10km D Indust.
CSFP option1 EOLCS- BI1612- 10- CLI1 1.25G/ 1.25G 1310nm/ 1490nm 10km D Indust.
CSFP option1 EOLCS- BI1612- 20- LCI1 1.25G/ 1.25G 1490nm/ 1310nm 20km D Indust.
CSFP option1 EOLCS- BI1612- 20- CLI1 1.25G/ 1.25G 1310nm/ 1490nm 20km D Indust.
CSFP option2 EOLCS- BI1603- XX- XX 155M/ 155M CWDM 100km D Comm
CSFP option1 EOLCS- BI1603- XX- XX1 155M/ 155M CWDM 100km D Comm
CSFP option2 EOLCS- BI1612- XX- XX 1.25G/ 1.25G CWDM 80km D Comm
CSFP option1 EOLCS- BI1612- XX- XX1 1.25G/ 1.25G CWDM 80km D Comm
CSFP option2 EOLCS- BI1624- XX- XX 2.5G/ 2.5G CWDM 20km D Comm
CSFP option1 EOLCS- BI1624- XX- XX1 2.5G/ 2.5G CWDM 20km D Comm
Company Contact:
- Posted By: Eoptolink Technology Inc. Ltd.
- Phone: 862867087999
- Address: No.127 West Wulian Street, Gongxing Town, Shuangli, Chengdu , China
- Email:
Published date: May 22, 2014
- Business Description: Eoptolink Technology Inc., Ltd is one of the professional maufactures of tranceiver modules in China.
Our products cover all the modules as GBIC, SFP, BIDI, COPPER SFP, XFP, CWDM, XFP, etc.
which are compatible with cisco, 3com, HP, Extrem swithes, etc.
We can customize our products to meet your need.
SFP, GBIC, XFP, COPPER SFP, CWDM, BIDI, XENPAK, CISCO, SFF, NETWORK, TRANSCIEVER, MODULE, FIBER, OPTICAL, 1x9
Related listings
-

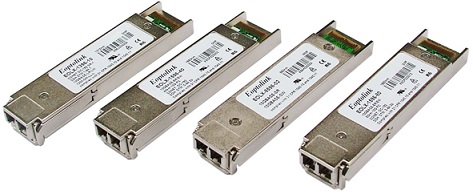

Tunable Dwdm Xfp Huawei Stm64 T 80km Cisco Systems Ons Xc 10g C Extreme 10200 Juniper Cband T50 ZrGeneral Electronics - Eoptolink Technology Inc. Ltd. - China - May 22, 2014 - contact company for priceHuawei XFP- STM64- T- 80km, Cisco Systems ONS- XC- 10G- C, Extreme 10200, Cisco Systems DWDM- XFP- C, Juniper XFP- 10G- CBAND- T50- ZR, Nokia Siemens Networks V50017- U792- K500, Transmode TRX100090/ TC, Sorrento Networks GMXFP‐ 10G‐ 40CT...
-
