D114011 X929011 G3 Plcl Meter - China

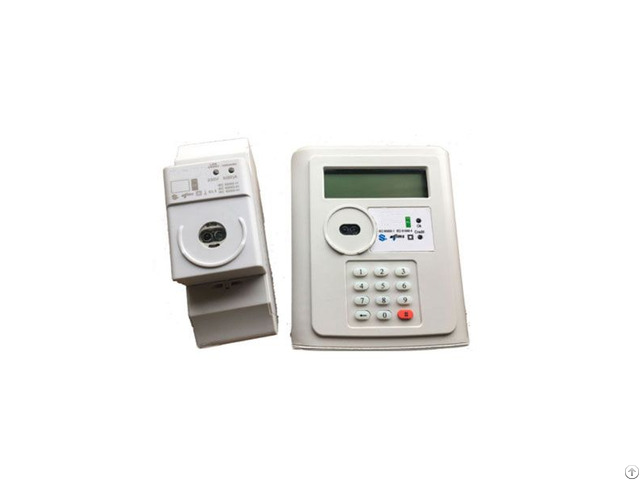

D114011-X929011 G3 PLCl Meter Brief Introduction D114011-X929011 is a single phase two wire Din rail prepaid meter with G3 PLC communication and built-in relay, it can be used with keypad IHD (optional).

1P Din Rail Meter Technical Parameter Part number D114011 - X9029011

Ref.

voltage 230V

Ref.

current 5(80)A

Impulse constant 1000imp/kWh

LCD display W/O

Operation temp.

-20~+70℃

Storage temp.

/

Relative humidity ≤95%

Ref.

frequency 50Hz

Accuracy class Cl.

1

Starting current 0.004OIb

Flashing red Impulse indication, width = 80ms±20ms

Power consumption ≤ 2W, <10VA

Standard compliant IEC62052-11, IEC62053-21, IEC62055-41 3.1 Metering Function

Measuring Devices meter Maximum current is up to 80A

Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.

3.2 Communication Function

Support G3 PLC communication

Support IR communication

3.4 Din Rail Meter wholesale Buzzer Function

with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off.

Also you could configure to enable or disable this buzzer function by IR communication.

3.5 Tariff

Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs.

Every timetable has a backup table for remote updating of backup timetable and configure the switching time.

Measuring Devices meter manufacturer will automatically switch the tariff table at the switching time.

3.6 Others

Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.

Degree of protection: IP51 (indoor meter)
