Forward Fw Bf03bf04 1300w Hot Air Gun - China

Description

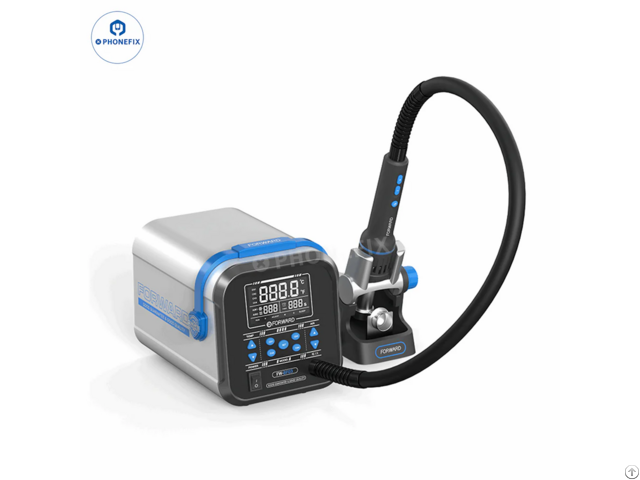

FORWARD FW-BF03 FW-BF04 1300W Hot Air Desoldering Station has a 1300W ceramic heating core and a 16, 000W RRM high-speed turbo fan.

It adopts a unique adjustable rocker arm design, and the angle can be adjusted at will.

The innovative handle can be controlled by wire, the sleep seat can be adjusted, and the timer can prevent overload.

The air nozzle is stored at the fingertips.

Three-button control, global control, maintenance operation is smoother.

FW-BF03 Features:

1 - Precise temperature control: Using resistance wire heating and K-type thermocouple sensing, microcomputer PID control, ensuring ±2°C accuracy and minimum linear distortion.

2 - Customizable operation: The handle includes 3 buttons for switching memory channels, adjusting temperature, air volume and air supply mode, which is convenient and flexible to use.

3 - Efficient airflow: Using high-performance double-ball vortex fan, low noise, light weight, large air volume, high air pressure and long service life.

The adjustable air volume range is 5% to 200%.

4 - Magnetic switch handle: It can easily enter the working mode when removed from the bracket, and return to the standby mode through cooling air after putting it back, reducing energy consumption and extending the life of the heating element.

5 - Active safety protection: Includes patented safety functions such as 3S fault detection, anti-dry burning protection, handle does not burn, and automatically cut off the load when faulty.

6 - Sound and fault code prompts: Constant temperature, sleep, overtemperature, no heat fault, handle falling off, etc.

all have sound alarms and fault code prompts to ensure safe operation.

7 - Desoldering time alarm: The user can set the welding time, and the system will alarm when the time is up to prevent damage to the chip and circuit board due to long welding time.

Option:

FW-BF03 Hot Air Desoldering Station FW-BF04 Package Lists:

Manual x1

Power Cord x1

FW-BF04 x1

Air Gun Handle x1

Temperature Cue Card x1

Multi-function Sleeping Base x1

Ultra Low Wind Resistance Nozzle x5 Product Parameters:

Brand: FORWARD

Product model: FW-BF03/FW-BF04

Voltage: 220VAC/110VAC

Power consumption: 1300W

Air gun temperature range: 100℃-500℃

Airflow resolution: 5%-200%

Display form: LCD

Constant temperature accuracy: ±2℃

Air gun category: high-speed brushless turbine fan

Fan speed: 15000-18000 rpm

Handle line length: handle tube length 800mm

Main unit size: 174X230X173mm

Air gun bracket size: 102X159X131mm

Product weight: 3.1kg

Air gun bracket weight: 1.2kg

Packing size: 360X250X200mm
