Gprs Socket - China

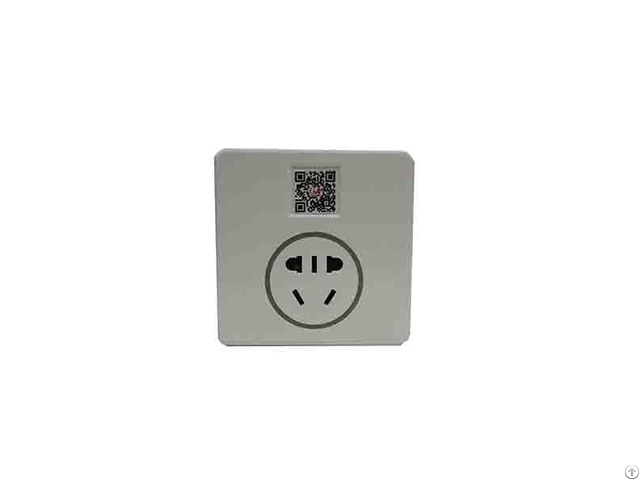

1 - Brief Introduction ZD159011 is a cost-effective intelligent socket .

It could support bluetooth and GPRS communication, Which can achieve reading data remotely with concentrator.

According to the design of standard type 86, it has the characteristics of small size, light weight, beautiful appearance and easy installation.

2 - Technical Parameter 2.1 Function

gprs contrator could support bluetooth and GPRS communication.

The mobile APP can connect socket via bluetooth to read and use energy data .

It could upload data directly/save date to sever .

It could measure active/reactive energy, current, voltage, active power, reactive power, apparent power, frequency, power factor .

smart socket meter could collect current, voltage, starting current waveforms, and detect harmonic content of current and voltage .

It has built-in 10A control relay .

2.2 Technical Parameters Rated voltage 220V

Current 2(10)A

Accuracy class Class 1

Standard IEC62052-11, IEC62053-21

Frequency 50-60Hz

Pulse constant 3200Imp/kWh

Power consumption ≤10VA ≤1W

Starting current 0.002Ib

Temperature range -20～70℃

Average relative humidity 75%

Max.

value 95%
