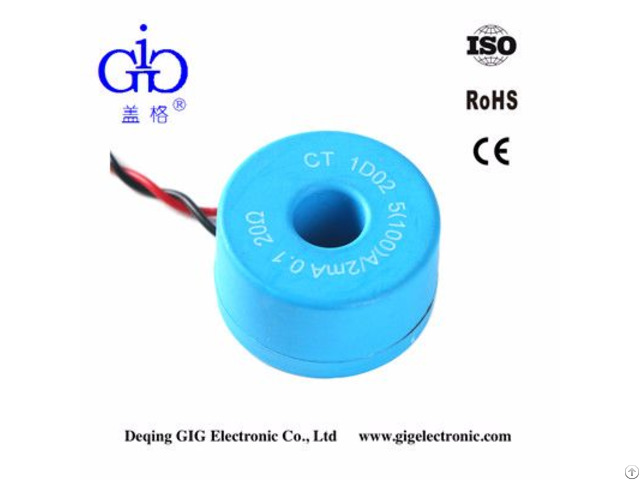

High Accuracy Lightweight Small Volume Mini Current Transformer - China

Primary current: 5A

Imax: 100A

Accuracy class: 0.1

Turns ratio: 1: 2500

Load resistance: 20 Ohm

Frequency: 50Hz-60Hz

Dielectric withstanding volt (Hi-pot): 4KVrms

Ambient temp: -40-+70 Degrees Celsius

Storage temp: -40-+80 Degrees Celsius

Encapsulant: epoxy

Alternative current signal is converted into a current signal accurately, to match the microprocessor electric circuit Small volume, can be directly welded on a PCB, easy for installation

Linear output wide current, high precision

Encapsulated with epoxy resin

Small orders are accepted High quality products with very competitive price

Use high permeability core

High accuracy, excellent linearity performance

Mini size, little weight and easy to assemble

Suitable for high precision, small phase error requirements of three­ phase electric energy meters Who We Are?

Deqing GIG Electronic Co., Ltd is a dynamic company which focus on R&D and manufacturing all kinds of current transformers since 2003 - What GIG Electronic Offering?

GIG Electronic manufacture precision current transformers for KWH Electric Meter, electric energy meter, Power Meter, Watt-hour meter, digital meter and other electronic products, is one of the main drafters of the national industry standard of mini current transformer and mini voltage transformer.

Why Choose GIG Electronic?

With strong technical strength providing reliable, accurate current transformer solution for you, proud of the highest level of accuracy products such as 0.1 and 0.2 class for a variety of applications.

Custom-made is very welcome.

All our transformers measure different current ratings with different sizes that you can always find right solutions here.

For your assurance, full-inspection for the raw material and finished product, all of our products are manufactured under ISO 9001: 2000-certified operations, and are compliant with CE and ROHS standards.

With high performance, top quality features and competitive prices, our products have become popular in the domestic and international markets, such as Europe, Southeast Asia and the Middle East.

Inquire To GIG Electronic Now!

We are looking forward to growing, developing and prospering together with all of our partners and customers worldwide.

Contact us now!
