Ingke Ykg 862119nl Direct Substitute Te 1840855 1 - China

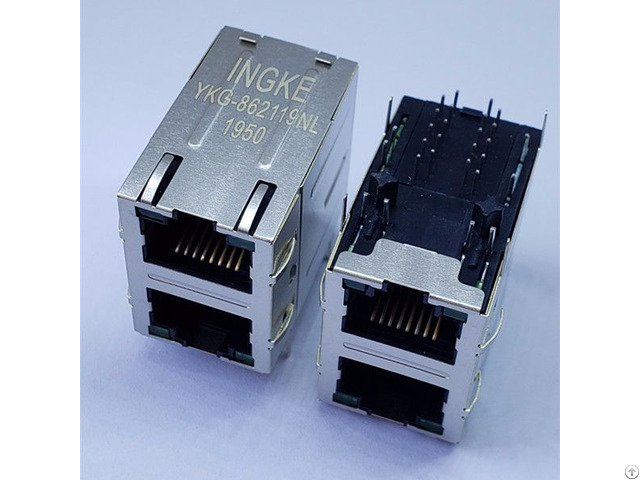

INGKE YKG-862119NL Direct Substitute TE 1840855-1 2 Port 1000 Base-T RJ45 Magnetic Jack Through Hole TE Part Number: 1840855-1

Made in China: YKG-862119NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 2

Number of Rows: 2

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Green

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up and Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

5-2301994-5 5-2301994-6 5-2301994-7 5-2301995-1 2301994-1 2301994-3 2301994-3 2301994-4 2301994-4 2301995-2 2301995-2 2301994-8 2301994-8 2301995-3 2301995-3 2301994-9 5-2301994-1 5-2301994-3 5-2301994-4 5-2301995-2 5-2301994-2 5-2301994-8 5-2301994-9 5-2301995-3 2301995-1 2301995-1 2301994-5 2301994-5 2301994-6 2301994-6 2301994-7 2301994-7 2301994-2 2301994-2 2301994-9

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
