Ingke Ykgu 8500bnl Direct Substitute 7499110124 1 Port 1000 Base T Magnetic Modular Rj45 Jacks - China

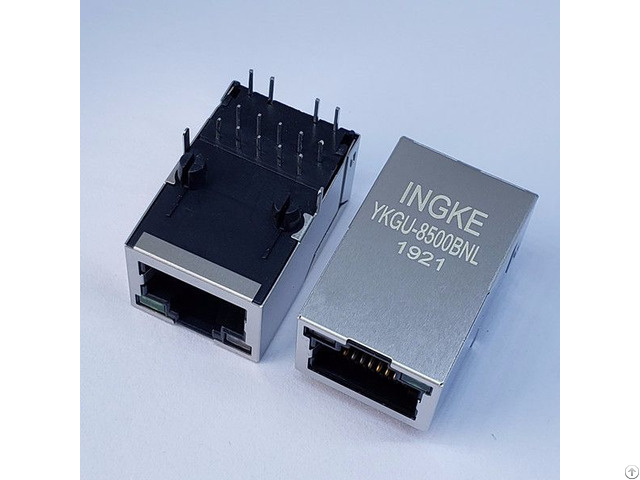

Ingke YKGU-8500BNL Direct Substitute 7499110124 1 Port 1000 Base-T Through Hole Magnetic Modular RJ45 Jacks Wurth Part Number: 7499110124

Made in China: YKGU-8500BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green, Yellow - Green

Number of Cores per Jack: 8

Shielding: Shielded

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;7499021121 7499111005 7498111001 7499111446 7499111221A 74990111217 7499010441 74990112116A 7499511001 7499311611 7499511610 7497110616 7499010121A 74990101212 7499010003A 74990101212 7498210220A 7499111613 7497010211A 7499211003 7499411001

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
