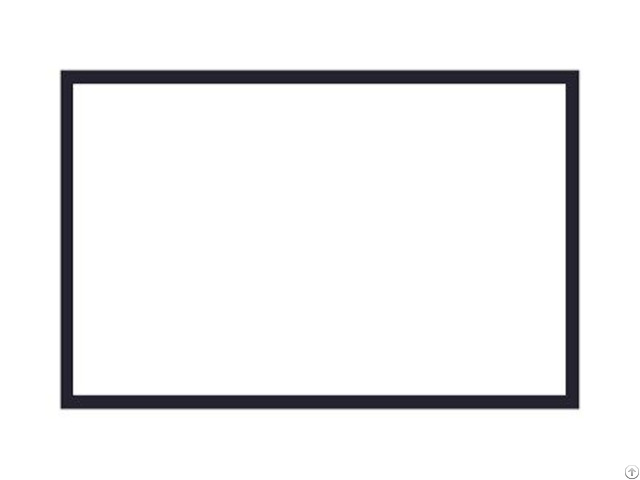

Ix5100 Series Large Touch Screen Overlay - China
price: contact company for price
Mechanical Specifications
Touch count: 10 points
Available size: 27~86 inches
Glass: 3~6mm toughened glass or no glass
Shell material: extruded aluminum structure or extruded tube structure
Electrical Specifications
Technical principle: Infrared block detection
Touch accuracy: center <1mm, edge <1.2mm
Power supply specifications: USB power supply (DC5V± 5%@500mA)
Power consumption: <1.5W
M T B F: 100, 000Hours
Interface Types
USB (default), COM
Large Touch Screen Overlay Environmental Specifications
Temperature: Operation : -20~70°C Storage : -40~85°C
Humidity: Operation : 10%-90% RH40°C No condensation
Storage : 10%-90% RH40°C no condensation
Electrostatic protection: EN61000-4-2 2008: L4, Class B
Contact discharge 8kV, air discharge 15kV
Light resistance: > 150k Lux(sunlight)
E M C: CE, FCC Class B Compatible
Dustproof and waterproof: front IP66(extruded tube + glass)
Software Specifications
Firmware upgrade: Support
Calibration: Four-point calibration
Device type: Touch mode, mouse mode
Operating system: Windows (xp, 7, 8.1, 10), the Linux (2.6 or higher), Android (2.6 or higher), Vxwork (6.5 or higher)
Company Contact:
- Posted By: BEIJING IRTOUCHSYSTEMS CO., LTD
- Phone: 15313310260
- Address: 2nd Floor, Building, No.21 Building, No.10 Xibeiwang East Road, Haidian District, Beijing, beijing , beijing , China
- Email:
- Website: https://www.irtouch.net/
Published date: September 4, 2025
- Business Description: IRTOUCH, founded in 2003,It possesses independently developed infrared touch technology, focusing on touch applications in the field of human-machine interaction, providing personalized holistic solutions for numerous industries.
IRTOUCH's independently developed infrared touch screen possesses multiple invention patents, forming a complete independent intellectual property system.
