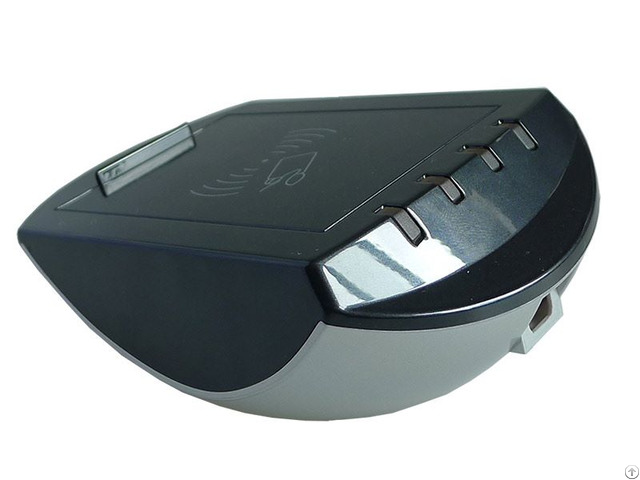

Jinmuyu Mr7911uc Usb Rc531 Rfid Reader - China
price: 67.50 Dollar US$
Technical parameters
• PCD: NXP MF RC531
• Working frequency: 13.56MHz
• RF protocol: ISO14443A, ISO14443B
• Operating distance: 100mm (MIFARE One, typical)
• SAM slots: 4 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max.
115200bps)
• Display: 4 LEDs, blue, yellow, green, red
• Buzzer: Build in
• Interface: USB PC/SC standard
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 135mm * 100mm * 45mm
• Weight: About 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• Demo Software: PCSC Communication Tool
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order
Company Contact:
- Posted By: Jinmuyu Electronics Co., Ltd
- Phone: 0086-18201080656
- Address: Room 132, NO. 16 Building, Tianqiaowan, Xinhua North RD., Tongzhou District, Beijing 101101, China., Beijing , Beijing , China
- Email:
- Website: https://www.jinmuyu.com
Published date: February 5, 2018
- Business Description: Jinmuyu is one of the leading 13.56MHz RFID reader manufacturers.
We build, design and customize products to satisfy a range of customers.
Our production facilities are certified under ISO/IEC10373-6, EMV2000, EMV2010 and PBOC 2.0 which are recognized all over the world.
Our products support ISO/IEC14443A, 14443B, 15693 and ISO7816(T=0, 1) protocols and also support MIFARE 1K, MIFARE 4K, FM11RF08, Ultralight, Ultralight C, MIFARE Mini, DESFire, MIFARE Plus; CPU cards(Type A/B, dual-Interface, T=CL); SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, AT88RF020; NXP I.
CODE SLI, TI Tag_it HF-I, ST LRI and so on.
Our Products:
- jinmuyu mr811uc usb rc531 rfid reader
- jinmuyu mr800ucv usb rc531 vertical rfid reader
- jinmuyu mr7911uc usb rc531 rfid reader
- hf rfid card reader writer module jmy6801c
- hf rfid module jmy6021 iic uart rs232c or usb
