Lte 4g 9 11dbi Lpda Antenna - China

price: 10.00 Dollar US$

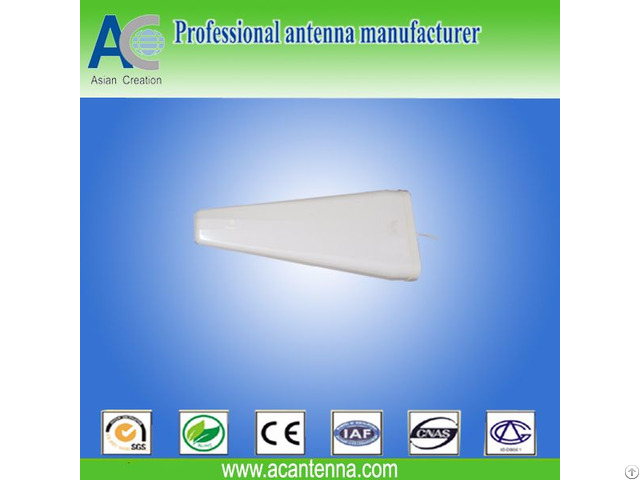

Lte 4g 9 11dbi Lpda Antenna

Products Photos Catalog Lte 11dbi Lpda Antenna Photos Catalog

Electrical

Frequency Range 698-960/1710-2700MHz

Band width 210/990MHz

F/B Ratio ＞16dB

Gain 9/11dBi

V.S.W.

R ≤1.8

Radiation Direction

Horizontal Beam width 90°

Vertical Beam width 60°

Polarization Vertical

Lightning Protection DC Grounded

Maximum Input Power 50W

Impedance 50Ώ

Connector N Female or customized

Cable Type RG58U

Cable Length 30cm

Antenna Radome Material ABS

Mount way Pole

Diameter of Installation Pole Ø30~Ø50mm

Mechanical

Dimensions 440×200×70mm

Weight 2.2KG

Operating Temperature -40℃ to+70℃

Rated Wind Velocity 60m/s

RoHS Compliant YES


Company Contact:


  • Phone: 13542591153

  • Address: Wangchung Industrial Area A,Sanshui, Foshan , GuangDong , China

  • Email: Email


Published date: August 17, 2016

  • Business Description: Asian Creation Communication Antenna Fty as a professional antenna manufacturer in China.

    estabaled in

    2001 - Based on a 500 square metre site, Asian Creation have 110employees, now we has 6 engineers, 5senior technicians and a regular company structrue, always with punctual delivery time, preferential price, superior quality, better service for the valued customer.
