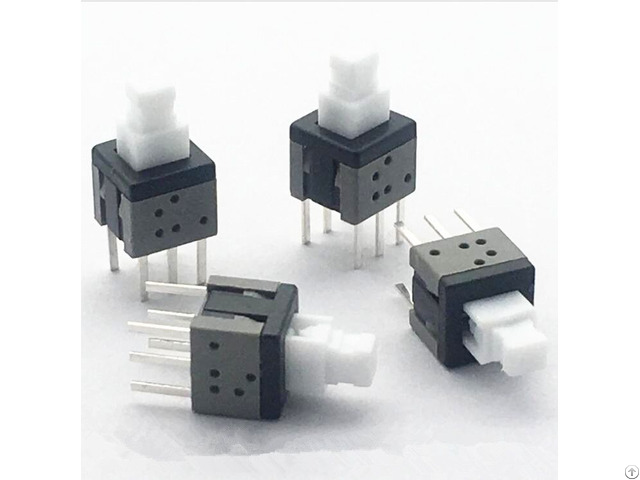

Push Button Switch 5.8x5.8mm With Momentary Self Locking Function - China

Specifications:

Storage temperature range: -15°C~+60°C

Tempe rature range for use: -40°C~+85°C

Rating: DC 50V 0.5A

Press force: 250±50gf

Soldability: an hour later, the steam aging, the soldering area of the terminal shall be immersed into molten solder at a temperature of 235 ±5°C for 2 ±0.5 seconds, after test more than 90% of the dipping part shall be covered by solder

Contact resistance: 100mΩ (maximum)

Insulation resistance: 100MΩ (minimum)

Withstand voltage: AC 250V/50Hz for 1 minute

Liberated frequency: 50~60Hz Lifespan test: 20, 000 cycles of a knob operating shall be performed continuously at a rate of 40 cycles/minute Applications: Homes and industrial electronic equipment including computers, audio systems, portable lighting, love toys and more

Company Contact:

• Posted By: Dongguan Jinbaoli Electronics Co.,Ltd

• Phone: 15338026261

• Address: No3 Xinhai Road , Langbei , Changping Town, Dongguan , Guangdong Province, China

• Email:

• Website: http://www.jbl-hk.com

• Business Description: Dongguan Jinbaoli Electronics Co., Ltd（Jinbeili） was established in 2000, engaged in the develop, produce and sale top quality electronic switches , sockets and connectors .

  Main products including Slide Switch , Tactile Switch , Push Button Switch , Phone Jack , DC Power Socket , USB Connector , SD/SIM Card holder etc .

  Our products are widely used in various of professional audio –visual products, home appliance , smart home products , electronic toys , instruments and meters, mobile phones , notebook computers and other peripherals etc .



  Our Company HQ locates in Changping town , Dongguan city ,with convenient transportation，just 10 minutes far away from Chang-Hu high speed way Exit.

  Our company own three factories ,two in Dongguan city , and the other one in Qinzhou city, Guangxi Province , with more than 500 Employees in total , including a batch of experienced R&D technicians and production staffs .

  Our company consists of Product Injection Department, Metal Stamping Department, Production Department, Quality Department, R&D department and Engineering Department.

  We are strict in quality control from molding injection to stamping, assembling and inspection.

  And we have passed both the QS of ISO9001 .

  In 2018, we fully imported IATF 16949.

  Our company develop and innovate continuously, import the newest international technologies.

  In order to achieve top quality production and high productivity, our company had designed and developed automatic equipments independently.

  So far, most of our products have achieved to be produced by automatic equipments, reduce the instability of the manual production, improve the production efficiency, save the labor cost, ensure the top quality product to be produced, and better to meet the requirements of the market.

  From 2006, all products are in line with ROHS.

  And now, all products meet the standards of ROHS &REACH.

  We strictly control from the material purchase , to production and delivery , send our products to be tested by the Third-party testing agency in regular every year , insure that all products could meet the customers green environmental requirements .

  Our business mainly in China , Hongkong , Taiwan , Japan , Southeast Asia , North America , Europe and other places of the world .

  Top quality product, good after-sale service are our foundation of foothold and development.

  Base on the policy of “professional manufacturing, service sincerely, customer first, quality first”, we always provide top quality products and best service to our customers.

  We have obtained good frame in the field of Switches , Sockets and Connectors , also have won the support and trust from many famous companies like Comfort Science & Technology Group, Energizer Group , Newsmy Digital Technology , Newland Group , Iris Group , Samsung , Yaskawa etc .

  Jinbaoli is your the most reliable cooperative partner!
