Si 60002 F Ykjd 8209nl 1 Port 100 Base T Through Hole Rj45 Ethernet Connectors - China

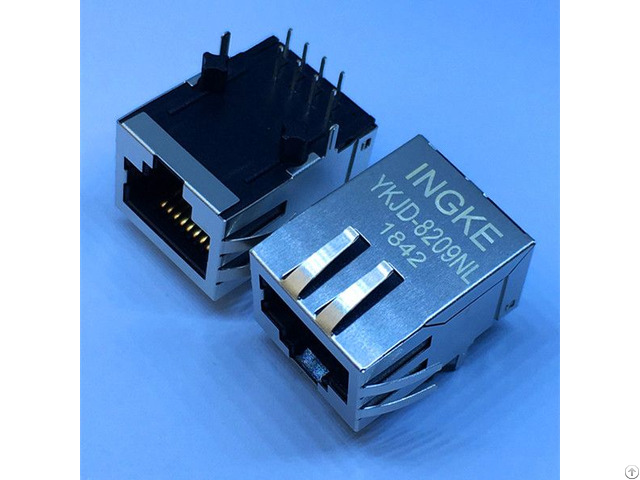

Ingke YKJD-8209NL 100% Cross SI-60002-F Bel 1 Port 100 Base-T Through Hole RJ45 Ethernet Connectors Part Number : SI-60002-F

Made in China: YKJD-8209NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Panel Mount, Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Does Not Contain LED

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

SI-50207-F SI-50189-F SI-50194-F SI-50195-F SI-50199-F SI-50201-F SI-50205-F SI-50210-F SI-50211-F SI-50212-F SI-50214-F SI-50219-F SI-50223-F SI-50224-F SI-50237-F SI-51014-F SI-51015-F SI-51021-F 0845-2G1T-H6 SI-26001-F SI-30039-F SI-30113-F SI-30135-F SI-46008-F SI-46009-F SI-46012-F SI-46017-F SI-46019-F SI-50065-F SI-50076-F SI-50089-F SI-50096-F SI-50107-F SI-50109-F SI-50113-F SI-50124-F SI-50125-F SI-50139-F SI-50141-F SI-50156-F SI-50161-F SI-50164-F SI-50174-F SI-50179-F SI-50184-F SI-50186-F
