Siemens Plc S7 200 6es7211 0ba23 0xb0 - Hong Kong
price: contact company for price
siemens plc s7-200 6ES7211-0BA23-0XB0
SIMATIC S7-200, CPU 221 COMPACT UNIT, AC POWER SUPPLY 6 DI DC/4 DO RELAY 4 KB CODE/2 KB DATA,
Supply voltage
120 V AC Yes
230 V AC Yes
Line frequency
Frequency of the supply voltage 63 Hz
Load voltage L+
Rated value (DC) 24 V
permissible range, lower limit (DC) 5 V
permissible range, upper limit (DC) 30 V
Load voltage L1
Rated value (AC) 100 V; 100 to 230 V AC
permissible range, lower limit (AC) 5 V
permissible range, upper limit (AC) 250 V
permissible frequency range, lower limit 47 Hz
permissible frequency range, upper limit 63 Hz
Input current
Inrush current, max.
20 A; at 264 V
from supply voltage L1, max.
120 mA; 15 to 60 mA (240 V); 30 to 120 mA (120 V); output current for expansion modules (5 V DC) 340 mA
Encoder supply
24 V encoder supply
24 V Yes; Permissible range: 20.4 to 28.8 V
Short-circuit protection Yes; electronic at 600 mA
Output current, max.
180 mA
[nicht versorgt: TAK_ABX692_001_000]
Backup battery
Battery operation
Backup time, max.
50 h; (min.
8 h at 40 °C); 200 days (typ.
) with optional battery module
Memory
Number of memory modules (optional) 1; pluggable memory module, content identical with integral EEPROM; can additionally store recipes, data logs and other files
Data and program memory
Data memory, max.
2 kbyte
Program memory, max.
4 kbyte
Backup
present Yes; Program: Entire program maintenance-free on integral EEPROM, programmable via CPU; data: Entire DB 1 loaded from PG/PC maintenance-free on integral EEPROM, current values of DB 1 in RAM, retentive memory bits, timers, counters, etc.
maintenance-free via high-performance capacitor; optional battery for long-term buffering
CPU processing times
for bit operations, max.
0.22 µs
Counters, timers and their retentivity
S7 counter
Number 256
of which retentive with battery
adjustable Yes; via high-performance capacitor or battery
lower limit 1
upper limit 256
Counting range
lower limit 0
upper limit 32767
S7 times
upper limit 64
Time range
lower limit 1 ms
upper limit 54 min; 4 timers: 1 ms to 30 s; 16 timers: 10 ms to 5 min; 236 timers: 100 ms to 54 min
Data areas and their retentivity
Flag
Number, max.
32 byte
Retentivity available Yes; M 0.0 to M 31.7
of which retentive with battery 0 to 255, via high-performance capacitor or battery, adjustable
of which retentive without battery 0 to 112 in EEPROM, adjustable
Hardware configuration
Connectable programming devices/PCs SIMATIC PG/PC, standard PC
Digital inputs
Number/binary inputs 6; integrated
m/p-reading Yes; optionally, per group
Input voltage
Rated value, DC 24 V
for signal "0" 0 to 5 V
for signal "1" min.
15 V
for signal "1", typ.
2.5 mA
Input delay (for rated value of input voltage)
for standard inputs
Parameterizable Yes; all
at "0" to "1", min.
0.2 ms
at "0" to "1", max.
12.8 ms
for interrupt inputs
Parameterizable Yes; I 0.0 to I 0.3
for counter/technological functions
Parameterizable Yes; (E0.0 to E0.5) 30 kHz
Cable length
Cable length, shielded, max.
500 m; Standard input: 500 m, high-speed counters: 50 m
Cable length unshielded, max.
300 m; not for high-speed signals
Digital outputs
Number/binary outputs 4; Relay
Functionality/short-ci rcuit strength No; to be provided externally
Switching capacity of the outputs
with resistive load, max.
2 A
Output voltage
for signal "1", min.
L+/L1
Output current
for signal "1" rated value 2 A
for signal "0" residual current, max.
0 mA
Output delay with resistive load
"0" to "1", max.
10 ms; all outputs
"1" to "0", max.
10 ms; all outputs
Parallel switching of 2 outputs
for increased power No
Aggregate current of outputs (per group)
all mounting positions
up to 40 °C, max.
6 A
horizontal installation
up to 55 °C, max.
6 A
Relay outputs
Max.
number of relay outputs, integrated 4
Number of operating cycles, max.
10000000; mechanically 10 million, at rated load voltage 100, 000
Cable length, shielded, max.
500 m
Cable length unshielded, max.
150 m
Analog inputs
Number of analog potentiometers 1; Analog potentiometer; resolution 8 bit
Encoder
Connectable encoders
2-wire sensor Yes
Permissible quiescent current (2-wire sensor), max.
1 mA
1st interface
Type of interface Integrated RS 485 interface
Physics RS 485
Functionality
MPI Yes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s
PPI Yes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s
Serial data exchange Yes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbit/s; the PC/PPI cable can also be used as RS232/RS485 converter
MPI
Transmission rate, max.
187.5 kbit/s
Transmission rate, min.
19.2 kbit/s
Integrated Functions
Number of counters 4; High-speed counters (30 kHz each), 32 bits (incl.
sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max.
20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities (incl.
call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc.
Counter frequency (counter) max.
30 kHz
Number of alarm inputs 4; 4 rising edges and/or 4 falling edges
Galvanic isolation
Galvanic isolation digital inputs
between the channels Yes
between the channels, in groups of 2 and 4
Galvanic isolation digital outputs
between the channels Yes; Relay
between the channels, in groups of 1 and 3
Permissible potential difference
between different circuits 500 V DC between 24 V DC and 5 V DC; 1500 V AC between 24 V DC and 230 V AC
Degree and class of protection
IP20 Yes
Ambient conditions
Environmental conditions For further environmental conditions, see "Automation System S7-200, System Manual"
Operating temperature
horizontal installation, min.
0 °C
horizontal installation, max.
55 °C
vertical installation, min.
0 °C
vertical installation, max.
45 °C
Air pressure
permissible range, min.
860 hPa
permissible range, max.
1080 hPa
Relative humidity
Operation, min.
5 %
Operation, max.
95 %; RH class 2 in accordance with IEC 1131-2
Configuration
programming
Command set Bit logic instructions, compare instructions, timer instructions, counter instructions, clock instructions, transmissions instructions, table instructions, logic instructions, shift and rotate instructions, conversion instructions, program control instructions, interrupt and communications instructions, logic stack instructions, integer maths, floating-point math instructions, numerical functions
Program processing free cycle (OB 1), interrupt-controller, time-controlled (1 to 255 ms)
Program organization 1 OB, 1 DB, 1 SDB subroutines with/without parameter transfer
Number of subroutines, max.
64
Programming language
LAD Yes
FBD Yes
STL Yes
Know-how protection
User program protection/password protection Yes; 3-stage password protection
Connection method
Plug-in I/O terminals No
Dimensions
Width 90 mm
Height 80 mm
Depth 62 mm
Weight
Weight, approx.
310 g
Status Mar 25, 2013
6ES7211-0BA23-0XB0
6ES7211-0BA23-0XB0
6ES7211-0BA23-0XB0
We can supply many automation producuts of siemens or famous brand's products.
Pls welcome to our website http: //www.
aotewell.
com !
CPU:
6ES7211-0AA23-0XB0
6ES7212-1AB23-0XB0
6ES7212-1BB23-0XB0
6ES7214-1AD23-0XB0
6ES7214-1BD23-0XB06ES7 211-0BA23-0XB0
6ES7214-2AD23-0XB0
6ES7214-2AS23-0XB0 6ES7211-0BA23-0XB0
6ES7214-2BD23-0XB0
6ES7216-2AD23-0XB0
6ES7216-2BD23-0XB0
Extension module:
6ES7221-1BH22-0XA8 6ES7211-0BA23-0XB0
6ES7221-1BF22-0XA8
6ES7221-1EF22-0XA0 6ES7211-0BA23-0XB0
6ES7222-1BF22-0XA8
6ES7222-1EF22-0XA0
6ES7222-1HF22-0XA86ES7 211-0BA23-0XB0
6ES7222-1BD22-0XA0
6ES7222-1HD22-0XA0 6ES7211-0BA23-0XB0
6ES7223-1BF22-0XA8
6ES7223-1HF22-0XA8
6ES7223-1BH22-0XA8
6ES7223-1PH22-0XA8
6ES7223-1BL22-0XA8
6ES7223-1PL22-0XA8
6ES7223-1BM22-0XA8
6ES7223-1PM22-0XA8
6ES7231-0HC22-0XA8
6ES7231-0HF22-0XA0
6ES7231-7PB22-0XA8
6ES7231-7PC22-0XA0
6ES7231-7PD22-0XA8
6ES7231-7PF22-0XA0
6ES7232-0HB22-0XA8
6ES7232-0HD22-0XA0
6ES7235-0KD22-0XA8
6ES7277-0AA22-0XA0
6GK7243-2AX01-0XA0
6ES7253-1AA22-0XA0
6ES7241-1AA22-0XA0 6ES7211-0BA23-0XB0
6GK7243-1EX00-0XE0
6GK7243-1GX00-0XE0
Attachment6ES7211-0BA2 3-0XB0
6ES7291-8GF23-0XA0
6ES7297-1AA23-0XA0 6ES7211-0BA23-0XB0
6ES7291-8BA20-0XA0
6ES7290-6AA20-0XA0
6ES7901-3CB30-0XA0
6ES7901-3DB30-0XA0
6ES7292-1AD20-0AA0
6ES7292-1AE20-0AA0
6ES7292-1AG20-0AA0
6AV6640-0AA00-0AX0 6ES7211-0BA23-0XB0
6EP1332-1SH31
6ES7810-2CC03-0YX06ES7 211-0BA23-0XB0
Company Contact:
- Posted By: AOTEWELL International Limited
- Phone: 85265632160
- Address: UNIT 040, 7/F, BRIGHT WAY TOWER, NO. 33 MONG KOK , HK , Hong Kong
- Email:
- Website: http://www.aotewell.com
Published date: April 2, 2013
- Business Description: AoteWell is a industry supermarket that we can do professinal help
manufactures succeed and grow!
We are a leader in bringing electrical, mechanical, and motion control systems to companies of all sizes.
with industrial automation control and information solutions designed to give our costomers a competitive advantage
We agent a large of industrial automation products and process control instrument, we selling siemens plc and made in German prodution, A large number of stocks(siemens s7/siemens s5/siemens 200/siemens 300/siemens400) kindly sell some famous factory automation products , the brands such as SIEMENS, ABB, ALLEN BRANLEY, OMRON, SCHNEIDER,
MITSUBISHI and so on ! we are stronger on siemens PLC/HMI /INVERTERS&MITSUBISHI FA, AB PLC.
proess protection meanwhile, through the investment in mainland china and Asia.
we are looking forward to foring one of the largest automation marketing aompanies in the world!
Aother is our main business in the process control instrumentation , we also proxy siemens control instrumentation, no matter in which industry, no matter wehre you applied.
if you have a large under construction, we are best partners and we look forward to doing business with you in the future, !
We Also Can Supply Kinds Of Siemens's, Omron's, Allen Bradley's, Mitsubishi's, Abb's, Schneider's Products! And Much Automation's Products! Welcome To Visit Our Website
if you intereted in our products, please contact with us !
Sales team:
suzanne@aotewell.
c om
Technical team:
technical@aotewell .
com
Automation & Process instrument
AOTEWELL INC
http: //www.
aotewell.
com
http: //www.
aotewell.
net
Tel: +(852) 6563 2160
Fax +(852) 6563 2161
Tel: (86) 755 8660 6182
Fax: (86) 755 2647 638
Related listings
-
Temperature Stability Of Linbo3General Electronics - Jinan Jingzheng Electronics Co., Ltd. - China - April 1, 2013 - contact company for price
Lithium niobate single crystal electro-optic (LiNbO3) as an important functional material used to obtain more and more in optical communication, laser modulator switch, lithium niobate crystal for laser switch requires not only high extinction ratio,...
-

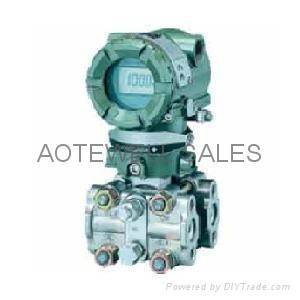

Yokogawa Eja110a Eja120 Eaj210 Eaj220a Eaj310 Pressure TransmitterGeneral Electronics - AOTEWELL International Limited - Hong Kong - April 1, 2013 - contact company for price
Yokogawa EJA110A EJA120 EJA115 EJA118 EJA130A EAJ210 EAJ220A EAJ310, EAJ430, EJA438N, EJA440A EJA530A Pressure Transmitters Buy Yokogawa EJA510A, Yokogawa EJA530A, Yokogawa differentialYokogawa at AoteWell inc we can offer best price at Yokogawa tran...
-

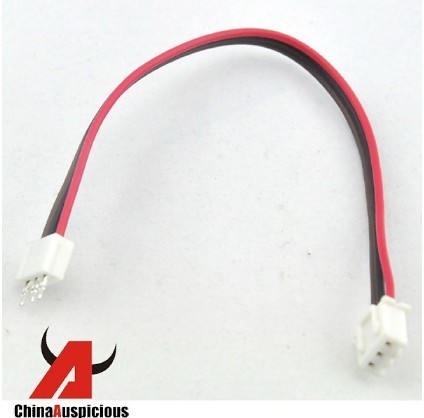

Wire Harnesses With Oem Availabe HarnesGeneral Electronics - ShenZhen ChinaAuspicious Technology Co., Ltd. - China - April 1, 2013 - contact company for price
