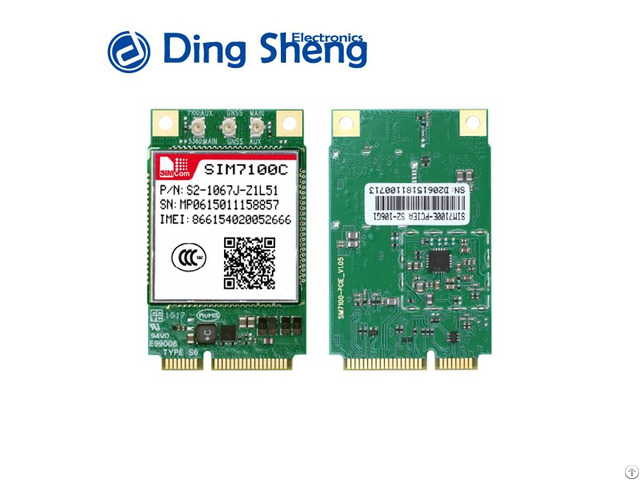

Simcom Cat3 4g Lte Sim7100c Pcie - Taiwan

SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm MDM9215 multiplemode LTE platform.

SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-

SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core: ARMv7 Cortex A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc.

With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's applications.

General features

-Four-Band TDD-LTE B38/B39/B40/B41

-Tri-Band FDD-LTE B1/B3/B7

-Dual-Band TD-SCDMA B34/B39

-Dual-Band UMTS/HSDPA/HSPA+ B1/B5

-Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz

-Control Via AT Commands

-Supply voltage range: 3.4V~ 4.2V

-Operation temperature: -40°C to +85°C

-Dimension: 50.95 X 32 X 4.95 mm

-Weight: 7g

-GNSS gpsOne Gen 8B;standalone;assisted, XTRA; Support for Data transfer

-TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps

-TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

-TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps

-HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps

-UMTS - Uplink/Downlink up to 384Kbps

-EDGE Class: - Max.

236.8Kbps(DL), Max.

236.8Kbps(UL)

-GPRS - Max.

85.6Kbps(DL), Max.

85.6Kbps(UL)

-CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call Other features

-USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8

-USB Driver for Windows CE/Mobile

-USB Driver for Linux 2.6/Android

-USB Driver for MAC

-RIL supporting for Android/Windows CE/Mobile

-Automatic installation

-Linux API SDK

-Firmware update via USB

-TCP/IP/IPV4/V6 Multi-PDP, MT PDP

-FTP/FTPS/HTTP/HTTPS/S MTP/POP3/DNS

-Jamming detection support

-Gobi SDK to the Win7/Win8/Linux

-Source code of the PC manager of the device for reference Interfaces

-USB2.0

-UART

-SIM card

-SPI

-I2C

-Keypad(5*5)

-Constant current sink

-GPIO

-RTC

-ADC

-PCM

-SDIO
