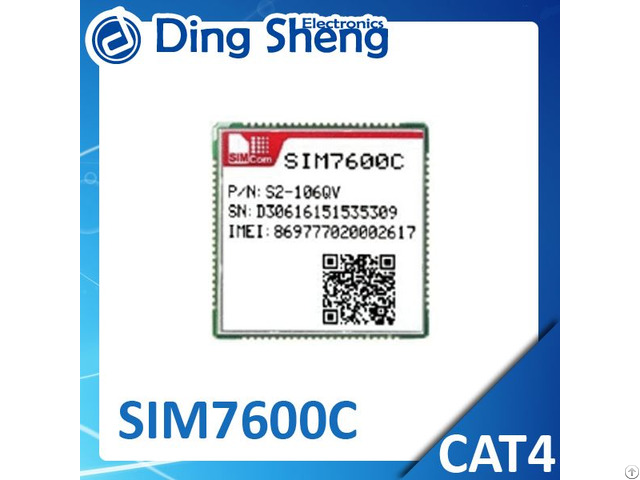

Simcom Cat4 4g Lte Module Sim7600c - Taiwan

Cat4 4G LTE Module SIM7600C is Multi-Band LTE-TDD/LTE-FDD/HSPA+/TD- SCDMA and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT4 up to 150Mbps for downlink data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, GPIOetc.

With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module providesmuch flexibility and ease of integration for customer's application.

Band

FDD-LTE : B38/B39/B40/B41

FDD-LTE : B1/B3/B8

TD-SCDMA : B34/B39

WCDMA/HSDPA/HSPA+ : B1/B8

GSM/GPRS/EDGE : 900/1800 MHz General Features

Supply voltage range : 3.4V~ 4.2V

NormalOperation Temperature : -40°C to +85°C

Dimension : 30 X 30 X 2.9 mm

Weight : 5.5g Support for Data transfer

• LTE CAT4

- Uplink up to 50Mbps, - Downlink up to 150Mbps

• TD-SCDMA

- Uplink up to 128Kbps, - Downlink up to 384Kbps

• TD-HSDPA/HSUPA

- Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

• HSPA+

- Uplink up to 5.76 Mbps, - Downlink up to 42 Mbps

• UMTS

- Uplink/Downlink up to 384Kbps

• EDGE Class

- Uplink/Downlink up to 236.8Kbps

• GPRS

- Uplink/Downlink up to 85.6Kbps

• CSD

- GSM data rate 14.4Kbps

- WCDMA data rate 57.6Kbps

- WCDMA 64kbps CSD for Video call Other Feature

• Control Via AT Commands

• GNSS (GPS, GLONASS and BeiDou/Compass, Galileo, QZSS)

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8

• USB Driver for Windows CE/Mobile

• USB Driver for Linux /Android

• RIL supporting for Android/Windows CE/Mobile

• Automatic installationfor windows

• Linux API SDK

• Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP, MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/ POP3/DNS/MMS

• DTMF

• MBIM to Win8

• Source code of the PC manager of the device for reference Interface

• USB2.0

• UART

• SIM card

• SPI

• I2C

• Constant current sink

• GPIO

• ADC

• PCM

• SDIO
