1 - Description

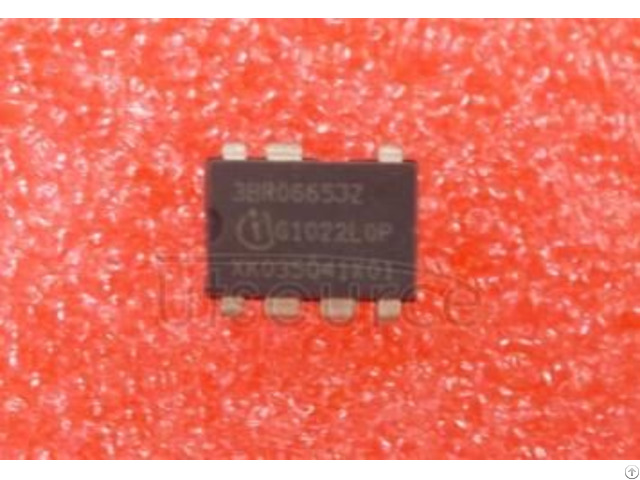

ICE3BR0665JZ is derived from ICE3BR0665J in DIP-7 package.

The CoolSET?-F3R jitter series (ICE3BRxx65J) is the latest version of CoolSET?-F3 - It targets for the OffLine battery adapters and low cost SMPS for lower power range such as application for DVD R/W, DVD Combi, Blue ray DVD player, set top box, etc.

Besides inherited the outstanding performance of the CoolSET?-F3 in the BiCMOS technology, active burst mode, auto-restart protection, propagation delay compensation, etc., CoolSET?-F3R series has some new features such as built-in soft start time, built-in blanking window, built-in frequency jitter, soft gate driving, etc.

In case a longer blanking time is needed for high load application, a simple addition of capacitor to BA pin can serve the purpose.

Furthermore, an external auto-restart enable feature can provide extra protection when there is a need of immediate stop of power switching.

2 - Features

> External auto-restart enable pin

> Max Duty Cycle 75%

> Overall tolerance of Current Limiting < ±5%

> Internal PWM Leading Edge Blanking

> BiCMOS technology provide wide VCC range

> Built-in Frequency jitter and soft driving for low EMI

> Active Burst Mode for lowest Standby Power

> Fast load jump response in Active Burst Mode

> 65kHz internally fixed switching frequency
