Utsource Electronic Components Tlp250 - USA
price: 0.31 Dollar US$
Description

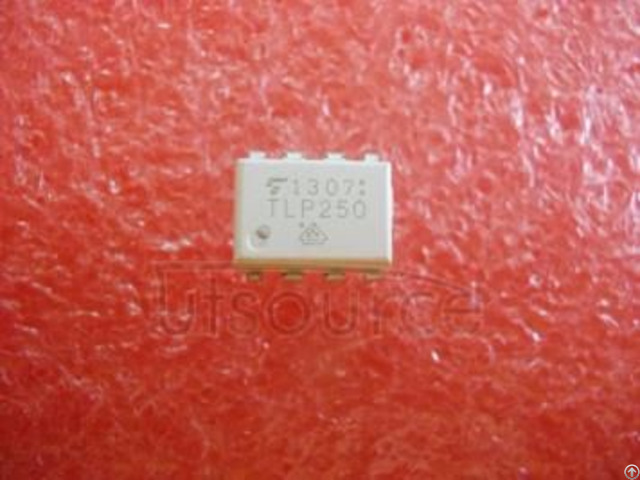

The TOSHIBA TLP250 consists of a GaAlAs light emitting diode and a integrated photodetector.
This unit is 8?lead DIP package.
TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.
Features
Input threshold current: IF=5mA(max.
)
Supply current (ICC): 11mA(max.
)
Supply voltage (VCC): 10?35V
Output current (IO): ±1.5A (max.
)
Switching time (tpLH/tpHL): 1.5μs(max.
)
Isolation voltage: 2500Vrms(min.
)
UL recognized: UL1577, file No.
E67349
Option (D4) type VDE approved: DIN VDE0884/06.92, certificate No.
76823 Maximum operating insulation voltage: 630VPK Highest permissible over voltage: 4000VPK
Creepage distance: 6.4mm(min.
) Clearance: 6.4mm(min.
)
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 20, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
