Wellon Vp898 Universal Programmer Ecu Chip Tuning Tool - China

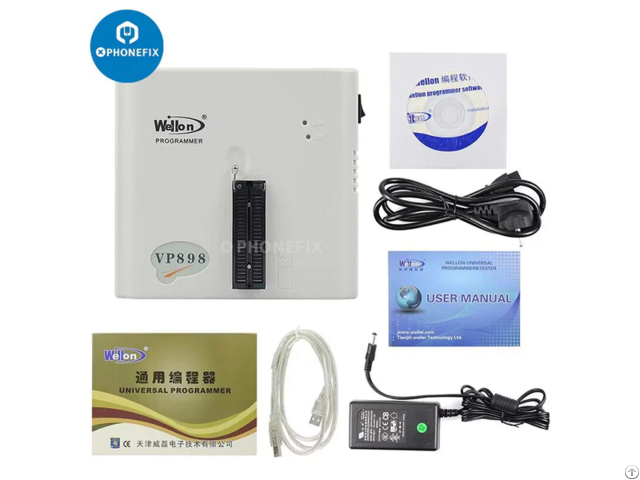

Wellon VP-898 universal programmer IC burning tool with high reliability, high speed, and high performance-price ratio.

Wellon VP199 programmer supports programmable devices such as PLD, E(E)PROM, FLASH, and MCU produced by dozens of manufacturers.

It can test TTL & CMOS standard logic devices and memories.

Wellon VP898 programmer is suitable for electronic product development, batch programming of chips, mobile phone, computer, car maintenance, etc.

Features:

1 - Support Simplified Chinese, Traditional Chinese, English, Italian, Dutch, Korean, Polish, Portuguese (Brazil), Turkish, Hungarian 10 languages.

2 - Chip information is extremely detailed, including packaging diagrams, chip model nomenclature and adapter information.

3 - The manufacturer's logo is provided in the chip selection, which can help users find chips more clearly and quickly.

4 - The Chinese and English online help system is convenient for users.

5 - Automatic identification of file format.

6 - Automatic detection of reverse chip insertion, wrong insertion, poor contact of pins and internal short circuit of the chip.

7 - It has the function of automatic programming after setting the chip contact is reliable, which is convenient for mass production.

8 - The programming parameters can be modified, and the programming parameters can be determined according to the specific conditions of the chip.

9 - Automatic identification of memory manufacturers and models.

10 - Chip serial number auto-increase function.

11 - Choose the model according to the manufacturer or choose the manufacturer's two-way selection method according to the model, and can automatically search and select the device.

12 - Fast buffer editing and modification, block copy, block filling, high and low byte exchange, character string search and other functions.

13 - Provides flexible file and cache management functions.

It can realize the automatic clearing of the memory when the file is loaded, and the splicing and loading of multiple files.

14 - Supported file formats: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (.

CDS), INTEL HEX16 format.

15 - Support automatic separation of byte (BYTE), word (WORD), double word (DOUBLE WORD) format data files.

16 - It can test TTL & CMOS standard logic devices and memories.

And can automatically determine the model of the standard logic device.

17 - The built-in test vector editor provides a test library structure open to users, and users can add test devices by themselves.

18 - Perfect self-test function to ensure the integrity of the hardware.

Functional testing can be performed on the programmer.

Specification:

1 - Power supply: input AC 100-240V 50/60Hz output DC 9V/1.5A.

2 - Standby current: <230 mA; working current: 250-450mA.

3 - Using lead-free soldering, the shell is made of flame-retardant ABS material that meets environmental standards.

4 - The programming module can program or test DIP devices from 4 cores to 48 pins.

5 - Through the adapter option, it can support devices in various packages from 4 cores to 64 cores.

6 - 48-pin imported locking socket.

7 - The device algorithm is completely implemented by software, and the USB interface has an automatic online upgrade function, which effectively protects the user's investment interests.

8 - With a perfect over-current protection circuit, the programmer will not be damaged due to chip short circuit.

9 - High-speed programming, programming P89C58, erasing + blank checking + programming + verification + encryption, only 1.9 seconds.

10 - Dimensions: 160*180*32mm; Net weight: 425g.
