Die Cast Aluminum Bulkhead Light Fittings Pc Cover 310 120 110mm E27 Socket - China

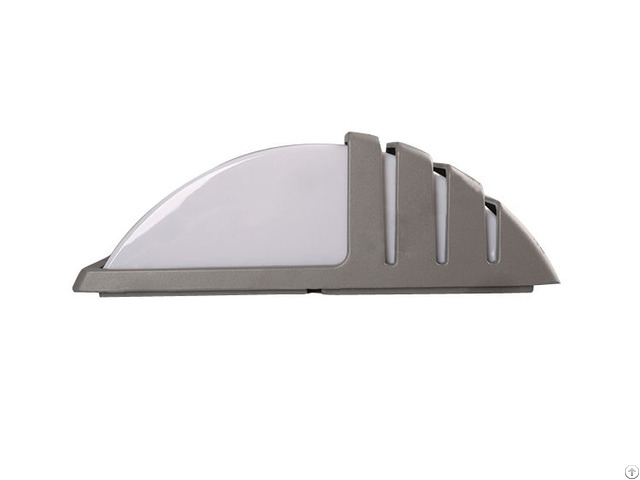

Description : the Bulkhead light fitting produced by superolux light is made of Die-cast Aluminum housing, PC diffuser, with Corrosion proof powdering coaring, size 310*120*111mm, finishing cover can be white /grey /black .

can be provided with E27 socket as well as 20W SMD version .

.

the series of bulkhead light fitting is designing with ip65 rated, is a great lighting luminaries solutions for applications both indoor and outdoor .

50000hours life span are provided .

led bulkhead light fitting parameters Model SP-MLGE27/LED

Input Voltage AC100-277VAC 50/60Hz

Dimension 350*120*111mm

Lighting Source Epistar/Cree/Samsung

Power Consumption 20W/E27*18w

Color Temperature WW(2800~3000K) NW(4000~4500K) CW(6000~6500K)

Luminosity ≥1500 ≥1550lm >1600lm

CRI(Ra) >80

Material Die Cast Aluminium housing

Work Temperature -25℃～+45℃

Cover Material PC

GW 1KG

NW 0.9KG

IK rate IK09

Lifespan (LED) ≥50, 000hrs (950% Lumen Maintenance)

IP Rating IP65

Lumen Attenuation <5% @ 5, 000hrs

Power Factor >0.95
