P20 Led Strip Display - China

P20 LED Strip Display

LED Media Facade

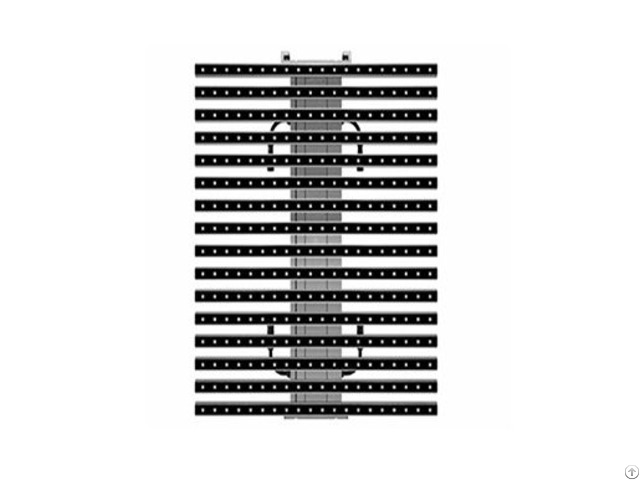

P20 RGB Outdoor Mesh Transparent LED Curtain Screen Easy Installation Light Weight 17KG / sqm

Advantages of transparent led media facade for building video wall screen

1 - High brightness, low attenuation, high reliability and consistency

2 - Aluminum alloy structure, high intension, low weight and high transparency

3 - Full sealed structure, protective level can reach IP67

4 - The signal of each strip is isolated, no affection to each other

5 - High grey level 65536, high fress rate>1100Hz;

6 - Each unit embedded with intelligent integration controller.

7 - Easy to connect, support signal two-way backup

8 - Easy to install, can install at face side, assemble freely

Technical Specification:

Color Model Wavelength Brightness

Red DIP346 625-630nm ≥1800mcd

Green DIP346 515-520nm ≥3800mcd

Blue DIP346 465-470nm ≥800mcd UNIT

Leds Configuration 1R1G1B

Unit Size 1600×320mm; 1280×320mm;

Pixel Pitch 20mm

Resolution 2500dot/m²

Resolution/unit 80dot×16dot; 64dot×16dot

Transparency 35%

Brightness ≥7000 nit

Weight 17kg/ m²

Max.

Power Consumption 400w/ m²

Stick Permutation Horizontal/Vertical

Viewing Angle H120°/V60°

Ingress Protection IP67

SYSTEM PARAMETERS

olor Temperature 3200K—9300K

Voltage AC220V/50HZ; or AC110V/60HZ

continuous operating hours ≥72 h

MTBF ≥10000 h

Out-of-Control Rate ＜1/10000

Operating environment Temperature: -20℃ to +60℃; Humidity: 10%-90%

Colors 14 Bit Full Color

Gray Scale 16384 grade

Frame Rate ≥60 Hz

Refresh Rate ≥1000 Hz

LED to LED Calibration Yes
