P3 91 Led Display - China

P3.91 LED Display

Rental Led Video Wall

Indoor Rental Led Display

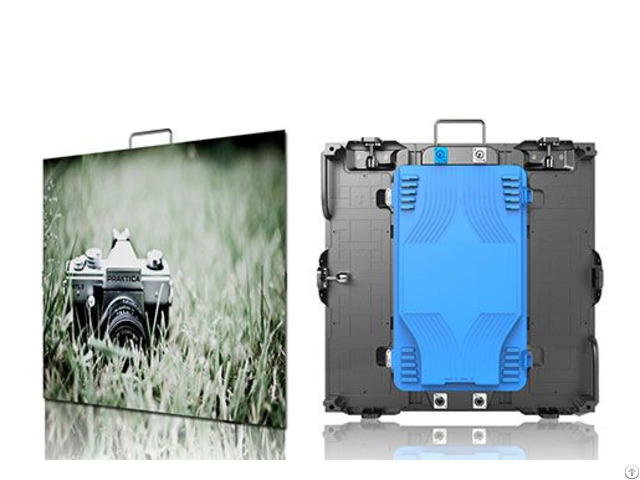

P3.91mm HD Rental led video wall 500mx1000mm rental led display Screen

Ph3.91mm Die-Casting Aluminum LED Display Cabinet Specification:

Pixel Pitch(mm) 3.91mm

LED Package SMD2121

Module Pixel (dots) 64dots×64dots

Module Size (mm) 250mm(W)*250mm(H)

Cabinet Size (mm) 500mmx1000mm

Input Voltage(AC) 220V±10% or 110V ±10%

Current Leakage to Ground (mA) < 3

Average Power Consumption (W/m2) 320

Max.

Power Consumption (W/m2) 850

Control Mode Synchronization

Control System VAG+DVI Card+Control Cards+Transmission Cables

Video Acceptable TV VCD DVD

Display Mode 576×576, 480*576, 960×576, 960×960…1152×960

Transmission Distance CAT-5E<130m /Multi-mode Optical Fiber<500m / Single Mode Optical Fiber<10km

Scan Mode 1/16

LED Drive Mode Constant Current

Brightness (cd/m2) 2000

Pixel Density 65746dots/m2

Viewing Distance(m) 3~25m

Hor.

Viewing Angle(degree) 160°

Ver.

Viewing Angle(degree) 120° or 160°

Brightness Calibration 256 grade

Gray Calibration 256~4096 grade

Images Calibration Contrast/Tonality/Single Module Lightness

Refresh Rate 300~2440 frame/s

Frame-changing Frequency More than 60Hz

Display color 17M~69G

Continuous Working Hours >72 Hours

Using Life 100, 000 Hours

MTBF >10, 000 Hours

Scatter OOC Point <0.01%

Continuous OOC Point 1‰

Working Temperature -20℃~+40℃

Working Humidity 10~60%

Software LEDVISION

Cabinet Weight (Kg) 12Kg/cabinet

Features of HD Ph3.91mm Rental led video wall die-cast aluminum cabinet

(1) Light.

Cabinet size of 500*1000mm and light weight of only 22.5 kg enable one-person installation easier and simpler, save installation time.

But traditional HD stage led screen is over 45 Kg with the same size.

(2) Thin.

Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort.

The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.

(3) Quick.

Adopting quick locking mechanism on the Up, down, left and right connection.

Tighten two cabinet up with pull and turn the two handles by 90 degrees.

You can install one cabinet with high accuracy in 10 seconds.

Cabinet splicing and wiring connection is fast and reliable.

Not only beautiful appearance but also a real sense of the rapid disassembly.

(4) Easy.

Adopting modular design, assembled cabinet can install and disassembly quickly and easily.

It is easy to maintenance.

(5) Compatible.

New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements.

Cabinet simplification, and various pixel pitch of indoor and outdoor led module such like P4, P5.33, P6.4, P8, P10.66, P12.8, P16 are compatible.

(6) Low.

Has excellent heat dissipation design and performance.

it is low noise and doesn't need external fan or air-condition.

With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.

P3.91mm New Aluminum LED Cabinet Advantages:

1 - Work with linsn led control system, guarantee very high refresh rate, no scaning line when taked photos or videos.

2 - UNIT smd led display takes with fast heating spread, to protect screen effectively and increase the use life largely.

3 - ENBON P2.5 LED screen is designed as slim body & light weight, Easy maintenance.

4 - This display can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats synchronously with PC.

5 - Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.

6 - Signal & power aviation connectors are water & dust proof, stable and reliable.

7 - Cushion under the cabinet can protect the modules from being damaged.

8 - Good color and brightness conformity.

The LED chip is sorted by 2.5mm, while the chip brightness difference is within 10%.
