110kw Electric Motor With 2 Amt Transmission Ev Conversion Kit For 4 5t Pure Electrical Truck - China
price: 14500.00 Dollar US$
Type: Permanent Magnet Synchronous
Voltage: 540VDC
Speed(RPM): 4500rpm
name:

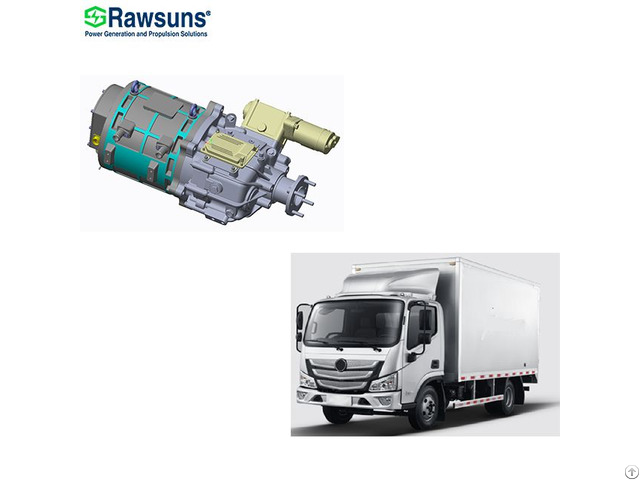

110kw 4500rpm electric motor with 2 AMT transmission ev drivetrain
model: RSEV-SV045-T2S-0 1
rated power: 60kW
peak power: 110kW
rated speed: 3000r/min
peak speed: 4500r/min
rated torque: 191Nm
peak torque: 350Nm
IP Grade: IP67 With 2 AMT powertrain product introduction
Illustrated component name:
①Powertrain with 2AMT gearbox
②Drive shaft assembly
③Drive axle assembly
④High voltage electro-hydraulic power steering assembly
[Or low-voltage electro-hydraulic power steering assembly]
⑤ Electric air compressor assembly
[Or vacuum booster pump assembly]
⑥Lead-acid battery
⑦ Auxiliary drive three-in-one integrated power supply (DC/DC, DC/AC, DC/AC)
[Or auxiliary drive two-in-one integrated power supply (DC/DC, PDU)]
⑧Drive motor controller
⑨Power battery (including BMS, PDU)
⑩ Vehicle controller
⑪Electronic gear assembly
⑫Brake pedal assembly
⑬Accelerator pedal assembly
⑭Combination dashboard
Company Contact:
- Posted By: Rawsun Technology (Shantou) Co., Ltd
- Phone: +8613929676982
- Address: Room No 1, 13th floor Jinsha Rd., Jinping,, Shantou , Guangdong , China
- Email:
- Website: https://www.rawsuns.com
Published date: February 8, 2021
- Business Description: Rawsun EV motor have wide ranges applications for Low-voltage vehicles, Passenger vehicles, Commercial vehicles, TAD (Transmission-mounted electric drive), DM (Direct-drive motor) , PHD (Parallel Hybrid drive), MHD (Multi-mode Hybrid Drive), EAD(Electric Axle Drive).,
We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.
