25mm Mini Stepper Gear Motor - China

Product Details:

Place of Origin: China

Brand Name: Vic-Tech

Certification: RoHS

Model Number: SM25-048S-118G

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit

Price: $4~$8/Unit

Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.

Delivery Time: 10~20 days after the sample is paid

Payment Terms: T/T, Paypal, Credit card

Supply Ability: 100000 pc/Month Detailed Product Description

Motor Type: PM Stepper Motor With Gearbox Motor Size: 25mm

Step Angle: 7.5°/10 Gear Ratio: 1: 10 1: 15 1: 20 1: 30 1: 60 1: 75 1: 100 Standard

No.

of Phase: 2 Phase Phase Resistance: 10Ω±10%

Rated Voltage: 24V Current / Phase: 0.3A

Product Name: SM25-048S-118G Motor Weight: 50g

Motor Body Height: 25REF Output Shaft Diameter: 3mm Description:

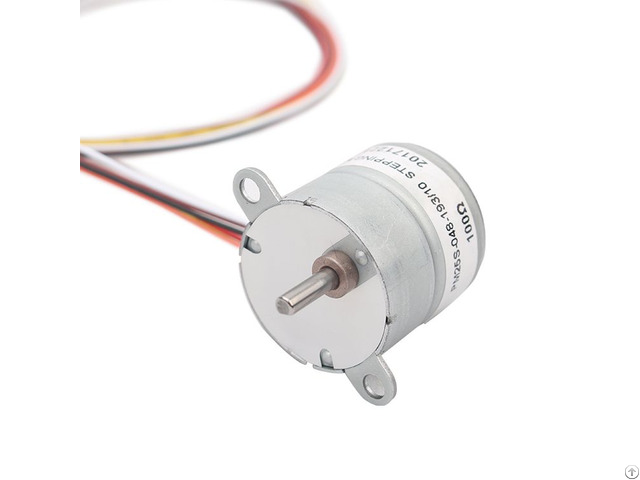

The SM25-048S-118G is a 2-phase 4-wire permanent magnet motor, the step angle of this single motor is 7.5 degrees, and it takes 48 steps to make one revolution (without gearbox)

In addition, we have different gear ratios for you to choose, the gear reduction ratio is 1: 10 1: 15 1: 20 1: 30 1: 60 1: 75 1: 100 standard, which can be determined according to your needs, the gear of the motor The ratio is 30: 1.

So the step angle is 7.5 degrees/30

If you are not sure about the speed ratio you need, you can give me the information about the motor you need, such as the voltage, speed and torque of the motor, and I can recommend it to you based on your needs NOTED: The output shaft of the motor can be customized according to customer installation requirements.

application: Valve application Household Appliances Air Conditioning refrigerator smart bathroom Automatic Door Lock CCTV Monitor Electronic equipment Motor Parameters:

Motor type Permanent magnet motor with gearbox

Motor diameter 25mm

Voltage 24V CD

Step Angle 7.5°/10

No.

of Phase 2 phase

Coil resistance 10Ω±10%(25℃)

Holding torque 2000 g*cm

Max pull-in rate 800pps

pull-in torque at 200pps 600g.

cm

Current per phase 300mA
