8mm Geared Stepper Motor 5v Shaft Customized With Metal Gearbox - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM08-016-250G

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc

Price: US$2.85~7

Packaging Details: Samples are packaged in small cartons and pearl cotton, and bulk products are in blister boxes and cartons, and when necessary, use pallets (when the quantity is large).

Delivery Time: 15 days

Payment Terms: T/T, L/C

Supply Ability: 100000/month Detailed Product Description

Type: Permanent Magnet Geared Stepper Motor Phase: 2-2 Phase

Step Angle: 18°/Phases Rated Voltage: 5V Or As Request

Application: Household Appliances, Optical Fiber Fusion Splicer, Medical Machine Gear Ratio: 5: 1~250: 1

Gear Type: Gear Stepper Motor Motor Rsistance: 40Ω

Current / Phase: 0.3A Shaft: Customized

High Light: 8mm Geared Stepper Motor, Geared Stepper Motor 5V, 5V Gear Motor

8mm Diameter Mini Gear Motor 5V Geared Stepper Motor And Metal Gearbox 18 degree step angle 8mm micro gearbox stepper motor with gearbox small stepper motor

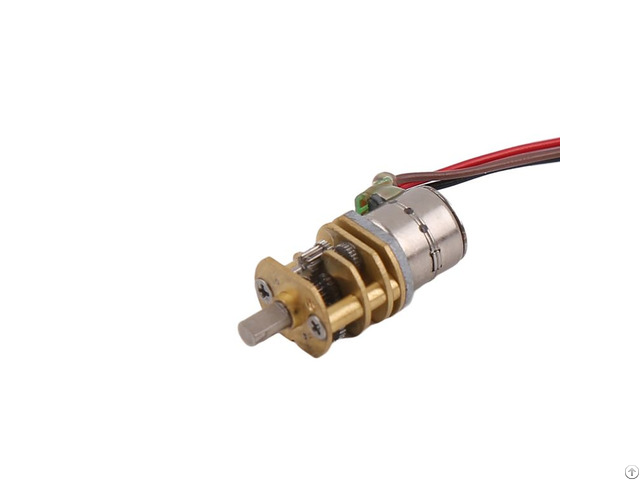

VSM08-016-10G is a combination of 8MM diameter micro stepper motor and 8*10 precision metal gearbox, the reduction ratio can be customized according to customer needs.

The basic step angle of the motor is 18 degrees, that is, 20 steps per revolution.

With the deceleration effect of the gearbox, the final angular resolution of the motor can reach 1.8~0.072 degrees, which can meet various needs and accurately control the rotation position of the venue.

The selectable transmission ratios are 1: 5, 1: 10, 1: 30 1: 50, 1: 60, 1: 100, 1: 250 - Customers can match the speed ratio according to different torque and speed requirements.

Customers can set the stepping motor drive frequency according to their needs.

A certain speed and torque can be achieved, With the same gear reduction ratio, the speed and torque of the motor are different at different drive frequencies, and the drive can be set according to your needs.

The gear box of this product adopts the most advanced related parts processing equipment in the world, with high precision, high efficiency, low noise, and adopts reasonable and reliable technology, so that the product has better reliability.

The power input part of the motor and the standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on.

Part of the output of the motor can use round shaft, D shaft, screw shaft, etc., which can be customized according to customer installation requirements
