Rohs Micro Linear Motor 5vdc With Screw Shaft - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM10 Linear stepper motor

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: US$3~7.5

Packaging Details: Out box is paper, for mass production, can use pallet for easy shipping

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 100000/month Detailed Product Description

Motor Type: Linear Stepper Motor Step Angle: 18 Degree

Thrus Force: 160g Driving Voltage: 5VDC

Current / Phase: 280mA Screw Stroke: 9mm

Phase: 2Phase Resistance: 18Ω±7% /Phase

High Light: RoHS Micro Linear Motor, 5VDC Captive Stepper Motor, Captive Stepper Motor With Screw Shaft SM10 is a special product of our company.

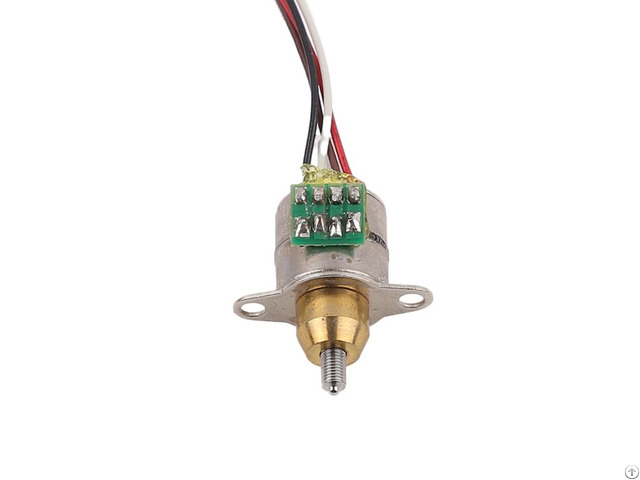

Stepper motor with lead screw with anti-rotation bracket.

A rotor with a nut, when the rotor is turned clockwise or counterclockwise, the lead screw will advance or retreat.

It converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw.

The motor step angle is 18 degrees, the lead spacing is 1mm, and the length of the connecting line can be customized according to customers' requirements Mainly used in valve control, automatic buttons, medical equipment, textile machinery, printers, robots and other related fields.

Working temperature: -40℃-60℃

Motor direction: CW & CCW
