Bms Hydraulic Motor - China

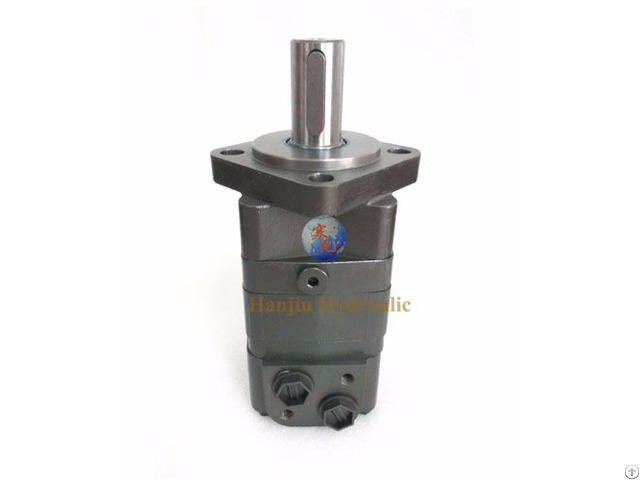

Hydraulic orbit motor BMS

BMS series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure.

The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Characteristic Features: *Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

*The output shaft adapts in tapered roller bearings that permit high axial and radial forces.

Can offer capacities of high pressure and high torque in the wide of applications.

*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Main Specifications:

Type

BMS

BMSE

80

BMS

BMSE

100

BMS

BMSE

125

BMS

BMSE

160

BMS

BMSE

200

BMS

BMSE

250

BMS

BMSE

315

BMS

BMSE

375

Geometric displacement

(cm3 /rev.

)

80.6

100.8

125

157.2

200

252

314.5

370

Max.

speed (rpm)

cont.

800

748

600

470

375

300

240

200

int.

988

900

720

560

450

360

280

240

Max.

torque (N·m)

cont.

190

240

310

316

400

450

560

536

int.

240

300

370

430

466

540

658

645

peak

260

320

400

472

650

690

740

751

Max.

output (kW)

cont.

15.9

18.8

19.5

15.6

15.7

14.1

14.1

11.8

int.

20.1

23.5

23.2

21.2

18.3

17

18.9

17

Max.

pressure drop (MPa)

cont.

17.5

17.5

17.5

15

14

12.5

12

10

int.

21

21

21

21

16

16

14

12

peak

22.5

22.5

22.5

22.5

22.5

20

18.5

14

Max.

flow (L/min)

cont.

65

75

75

75

75

75

75

75

int.

80

90

90

90

90

90

90

90

Max.

inlet pressure (MPa)

cont.

25

25

25

25

25

25

25

25

int.

30

30

30

30

30

30

30

30

Weight (kg)

9.8

10

10.3

10.7

11.1

11.6

12.3

12.6

* Continuous pressure : Max.

value of operating motor continuously.

* Intermittent pressure : Max.

value of operating motor in 6 seconds per minute.

* Peak pressure: Max.

value of operating motor in 0.6 second per minute.

Substitute Reference substance MOTOR CROSS REFERENCE TABLE HANJIU

HYDRAULIC

M+S

HYDRAULIC

EATON

CHAR LYNN

DANFOSS

ROSS

TRW

WHITE

CROSS

PARKER

SAM

BREVINI

BOSCH

RECROTH

BMM

MM MLHK

J SERIES

OMM BGM

MGX

BMP/BM1

MP HP

H SERIES

OMP DH

MF MG

WP RS

TC TE TB

BG

MGP GXP

BMR/BM2

MR HR MLHRW, RW

S, T SERIES W SERIES

OMR DS OMEW

MB

WR RE

TF

BR

MGR GMR

BMH/BM4

MH MLHH HW HWF OMH

ME

RE

TG BMS/BM5

MS MSY MLHS

2000 SERIES

OMS

ME

RE

TG

HPR

MGS GMS

BMT/BM6

MT MLHT MTM

6000 SERIES

OMT TMT

MJ HT

MGT, GMT

BMV

MV MLHV

10000 SERIES

OMV MGV GMV Hydraulic orbit motor applications: Brush cutters Mower Haveresting equipment Forestry equipment Turf equipment

Company Contact:

• Posted By: Shijiazhuang Hanjiu Technology Co.,Ltd

• Phone: +8631168123061

• Address: No.368 Youyi Street, Xinhua District, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.hjhydraulic.com

• Business Description: Hanjiu Technology, as a professional manufacturer of hydraulic products, started from 2010, is the first plant to produce and export hydraulic orbital motors, steering units in North of China, annual production over 300, 000pcs.
