24v 250w Nema 34 Brushless Dc Motor High Torque Low Speed - China

PRODUCT DESCRIPTION

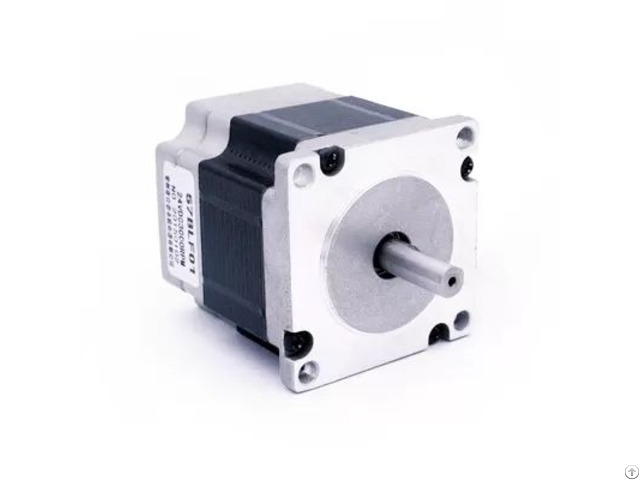

57BLF nema 34 high torque IP40 motor brushless DC 250W for robotic arms 57BLF01 3 phase 8 poles Voltage 24V, Rated current 3.33A, Rated torque 0.2 Nm 57BLF02 3 phase 8 poles Voltage 24V, Rated current 6.67A, Rated torque 0.4 Nm 57BLF03 3 phase 8 poles Voltage 24V, Rated current 10A, Rated torque 0.6 Nm 57BLF04-001 3 phase 8 poles Voltage 36V, Rated current 8.87A, Rated torque 0.8 Nm Electrical Specification: Model Model Model Model

Specification Unit 57BLF01 57BLF02 57BLF03 57BLF04-001

Number Of Phases Phase 3

Number Of Poles Poles 8

Rated Voltage VDC 24 36

Rated Speed Rpm 3000 3000 3000 3000

Rated Current A 3.33 6.67 10.0 8.87

Rated Torque N.

m 0.2 0.4 0.6 0.8

Rated Power W 80 125 188 251

Peak Torque N.

m 0.6 1.2 1.8 2.4

Peak Current Amps 10.0 20.0 30.0 26.6

Torque Constant N.

m/A 0.06 0.06 0.06 0.09

Back EMF constant V/kRPM 6.3 6.3 6.3 9.47

Body Length mm 59 80 101 122

Weight Kg 0.61 0.94 1.25 1.59 *Products can be customized by special request.

*Products can match gearbox 42, 52, 56, 63mm Wiring Diagram FUNCTION COLOR +5V RED UL1007 26AWG

HALL A YELLOW

HALLB GREEN

HALLC BLUE

GND BLACK

PHASE A YELLOW UL1015 20AWG

PHASE B GREEN

PHASE C BLUE Mechanical Dimension 24v 250w Nema 34 Brushless Dc Motor High Torque Low Speed 0 Changzhou Hetai Motors is an experienced motor manufacturer.

For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers.

We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

24v 250w Nema 34 Brushless Dc Motor High Torque Low Speed 1
