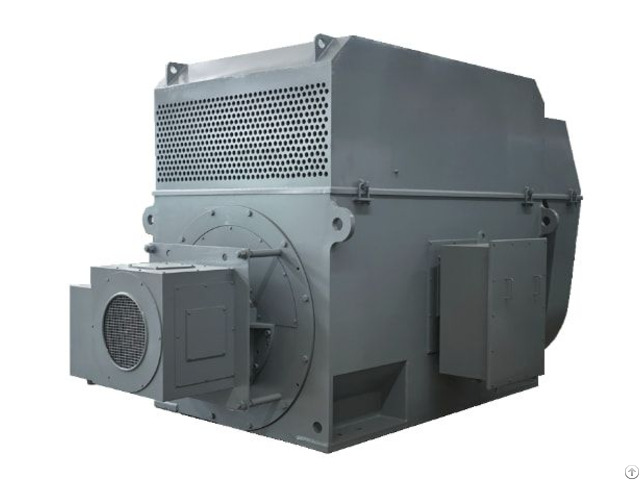

High Voltage Slip Ring Motors - China

Changli high voltage modular induction motors allow industries to operate within a wide power range and with great starting performance.

High voltage modular induction motors offer also high reliability, availability and efficiency in demanding applications.

Our modular induction motors can be optimized for a wide range of applications and are typically used in industries like chemical, metal, mining, cement as well as paper and pulp.

Modular induction motors have several cooling options to meet industries as well as customers’ specific requirements.

Our modular induction motors are easy to install, and Changli’s service makes maintenance easy throughout product lifecycle.

Modular induction motors are available for both direct on line (DOL) and variable speed drive (VSD).

Key benefits

· Wide power range available

· Excellent starting performance

· Available to all industry segments and applications in global supply

· Highest reliability to minimize operation cost from downtime

· High flexibility with customizable design

· Online Factory Acceptance Test (FAT).

Technical Parameters

Technical specifications Standard IEC and NEMA(electrical)

Output power Up to 23MW

Shaft heights 400, 450, 500, 560, 630, 710 (mm)

Number of poles 4-16

Voltages Up to 13, 8 kV

Frequency 50Hz or 60Hz

Ambient -55°C up to 60 °C

Cooling Air to air, Air to water

Protection IP55, IP56, IP66

Enclosure material Fabricated steel

Bearings Antifriction or sleeve

Mounting Horizontal or vertical

Operating Direct on line (DOL)

Company Contact:

• Posted By: Hebei Changli Electric Tech. Co., Ltd.

• Phone: 13780515679

• Address: No. 86, Xindian Road, Tianxin District, Changsha , Hunan , China

• Email:

• Website: https://www.changli-electric.com/

• Business Description: Founded in 1946, Changli Electric is a leading electric motor factory, among Top 10 industrial electric motor manufacturers in China.

  As a subsidary of Changli Group, with over 70 years' experience in R&D, production, sales and service, we can produce a wide range of electric motors widely applied in mining, cement, steel,metallurgy, petrochemical, water conservancy, oil and gas, pharmaceutical, etc.

  industries.

  With a fixed assets of 1,094 million yuan, Changli Electric covers an area of 400mu (about 270, 000m2), has over 600 sets of precision production equipment, with annual output value of 500,000,000 yuan.

  At present, we have over 400 employees, in which engineers and technicians accounting for 18%.

  With a strong technical research and development team and over 70 years' manufacturing experience, we can produce and customize various kinds of low voltage motors, medium voltage motors and high voltage motors in accordance with IEC,NEMA, GOST standards.

  We have obtained relevant certifications including ISO9001, ISO14001, ISO45001, CE, ATEX, NEMA, CCS, RS, etc.

  Our test center is Hunan Medium and Small Sized Motors Quality Supervision Station, an authorized test station of China National Quality Inspection Center, is responsible for the quality supervision and sampling inspection of electric motor products of various electric motor manufacturers.

  We can do the test for electric motors up to 20,000KW.

  Our products include low voltage electric motors, regular IEC motors (IE3, IE4, IE5 electric motors), NEMA standard and NEMA premium motors, GOST ANP series motors, etc.

  Regular asynchronous motors (Y series, YKK series, YKS series, YXKK series, YRKK series, YL series), variable frequency speed regulation motors (YSPKK series),etc.

  Explosion proof motors (YB series, YBX series, etc.

  ) Regular synchronous motors (T series, TK series, TM series, TDMK series, TFW series),etc.

  Permanent magnet motors (TYC series, GCS/F series, etc.

  ) Replacement electric motors ( M3BP series, AMI series, AXR series, HXR series, NXR series, NMI series) etc.

  Marine motors, special motors,etc.

  Power output: 0.18KW ~20, 000KW

  Voltage range: 380V to 13.8KV

  Shaft height: 80mm-1120mm
