Stepper Motor 20bygh206 - China

price: 20.00 Dollar US$

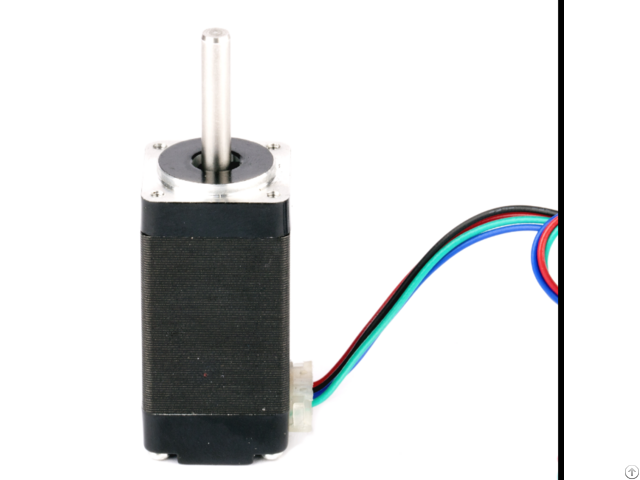

Stepper Motor 20bygh206

Products Photos Catalog Stepper Motor Photos Catalog

Part No: 20BYGH206 Single Shaft

Frame Size: NEMA8

Step Angle: 1.8 degree

Voltage: 1.92VDC

Current: 0.6A/phase

Resistance: 3.2 Ohm/phase

Inductance: 0.9 mH/phase

Holding torque: 14Kg-cm

Rotor inertia: 9 g-cm2

Detent torque: 2 kg-cm

Number of wire leads: 4

Weight: 0.05KG

Length: 28mm

Front shaft diameter: 4mm (1/4'')

Front shaft length: 20mm round shaft


Company Contact:


  • Phone: 13815007798

  • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

  • Email: Email


Published date: March 19, 2023 - Modified date: March 19, 2023

  • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

    Always adhere to the people-oriented, mature production technology, complete testing equipment.
