T85h156 6204 Nema 34 4 Wire Motor - India
price: contact company for price
Robust, reliable and high quality step motor with length 156 mm, 85 mm
in shaft diameter and 4 lead wires.
General Specifications
Item: Detail
Step Angle : 1.8°
Step Angle Accuracy : ±5% ( full step, no load)
Resistance Accuracy : ±10%
Inductance Accuracy : ±20%
Temperature Rise : 80°C Max.
( rated current, 2 phase on)
Ambient Temperature : - 20°C ~ +50°C
Insulation Resistance : 100 M O Min.
, 500V DC
Dielectric Strength : 500V AC for one minute
Shaft Radial Play : 0.02 Max.
( 450 g- load)
Shaft Axial Play : 0.08 Max.
( 4200 N ( 20 mm from the Flange) 50 g- load)
Max.
radial force : 60 N
Other Specifications
Series Model : T85H156- 6204
Motor Length : 156 mm
Ph.
Current : 6.2 A
Ph.
Res.
( Ohm) : 0.75
Ph.
Inductance : 9.0 mH
Holding Torque : 124 Kg- cm
Detent Torque : 3.6 kg- cm
Rotor Inertia : 4000 g- cm2
Lead Wires : 4
Company Contact:
- Posted By: Tiny Controls Pvt Ltd
- Phone: 09911193210
- Address: C 55, Nishat Park Kakrola, New Delhi, India
- Email:
- Website: http://www.tinycontrols.com
Published date: December 31, 2014
- Business Description: we are working since 2011 in the automation field with the aim to
provide the best quality automation products matching the current
standards of CNC industry at reasonable costs.
we are the supliers of
stepper motors and high speed spindle motors and are the manufacturer of
stepper motor drivers, CNC breakout boards, C
USB cnc Controllers, cable drag chains, reduction gear assemblies, power supplies, stepper motor controllers, spindle mounts, stepper pulse generators, CNC controllers, Mach3 CNC controllers
Related listings
-

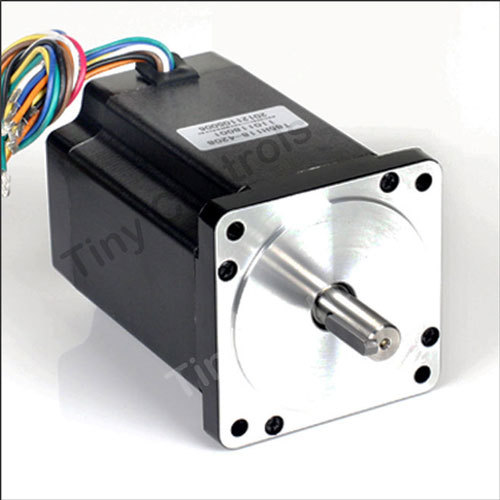

T85h118 4208 Nema 34 8 WireMotors - Tiny Controls Pvt Ltd - India - December 31, 2014 - contact company for priceHighly efficient, reduced weight and compact stepper with length 118 mm, diameter 85 mm and 8 lead wires. General Specifications Item: Detail Step Angle : 1.8° Step Angle Accuracy : ±5% ( full step, no load) Resistance Accuracy : ±10% Inductance Accu...
-
T85h80 4208 Nema 34 8 Wire MotorMotors - Tiny Controls Pvt Ltd - India - December 31, 2014 - contact company for priceHigh quality, sturdy Hybrid stepping motor with shaft length 80 mm and diameter 85 mm. General Specifications Item: Detail Step Angle : 1.8° Step Angle Accuracy : ±5% ( full step, no load) Resistance Accuracy : ±10% Inductance Accuracy : ±20% Tempera...
-

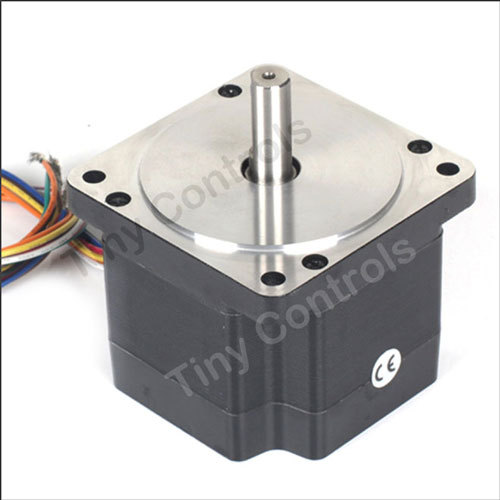

T85h65 2808 Nema 34 Bipolar MotorMotors - Tiny Controls Pvt Ltd - India - December 31, 2014 - contact company for priceRobust, reliable and compact bipolar with length 65 mm and shaft diameter is 85 mm with 8 lead wires. General Specifications Item: Detail Step Angle : 1.8° Step Angle Accuracy : ±5% ( full step, no load) Resistance Accuracy : ±10% Inductance Accuracy...
