    • Wantai Stepper Motor 28bygh105 - China

    price: 20.00 Dollar US$

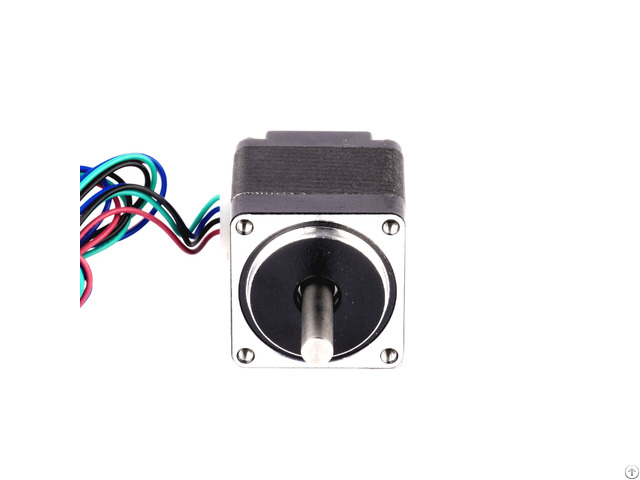

    Wantai Stepper Motor 28bygh105

    Products Photos Catalog Wantai Stepper Motor Photos Catalog

    Part No: 28BYGH105Single Shaft

    Frame Size: NEMA11

    Step Angle: 1.8 degree

    Voltage: 2.66VDC

    Current: 0.95A/phase

    Resistance: 2.8Ohm/phase

    Inductance: 0.8mH/phase

    Holding torque: 43Kg-cm

    Rotor inertia: 9g-cm2

    Detent torque: 3kg-cm

    Number of wire leads: 6

    Weight: 0.11KG

    Length: 32mm

    Front shaft diameter: 5mm

    Front shaft length: 20mm round shaft

    This model is for Single shaft, with 5mm motor shaft, 20mm front shaft length, round shaft! More Order Quantites, more discount!


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: March 19, 2023 - Modified date: March 19, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
