    • Wantai Stepper Motor 35byg302 100kg Cm 0 4a Cnc Engraver Medical Equipment - China

    price: 20.00 Dollar US$

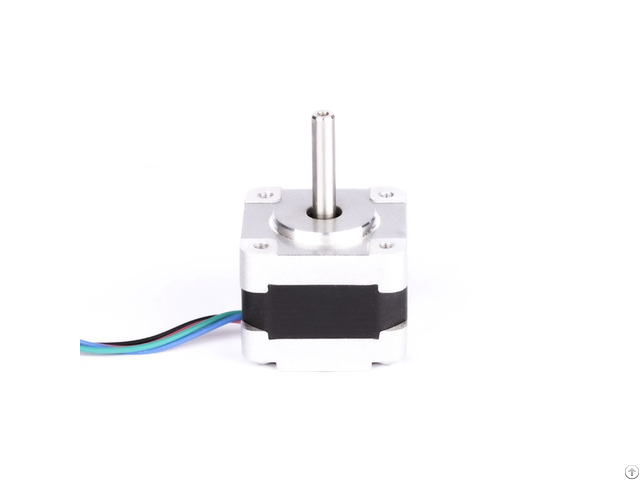

    Wantai Stepper Motor 35byg302 100kg Cm 0 4a Cnc Engraver Medical Equipment

    Products Photos Catalog Wantai Stepper Motor Photos Catalog

    Wantai Stepper Motor 35BYG302, 100Kg.

    cm, 0.4A, cnc engraver, medical equipment

    Part No: 35BYG302Single Shaft

    Frame Size: NEMA14

    Step Angle: 1.8 degree

    Voltage: 10.4VDC

    Current: 0.4A/phase

    Resistance: 26Ohm/phase

    Inductance: 10mH/phase

    Holding torque: 100Kg-cm

    Rotor inertia: 11g-cm2

    Detent torque: 8kg-cm

    Number of wire leads: 6

    Weight: 0.14KG

    Length: 28mm

    Front shaft diameter: 5mm

    Front shaft length: 24mm round shaft

    This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: March 26, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
