Wantai Stepper Motor 42byghw603 - China

price: 20.00 Dollar US$

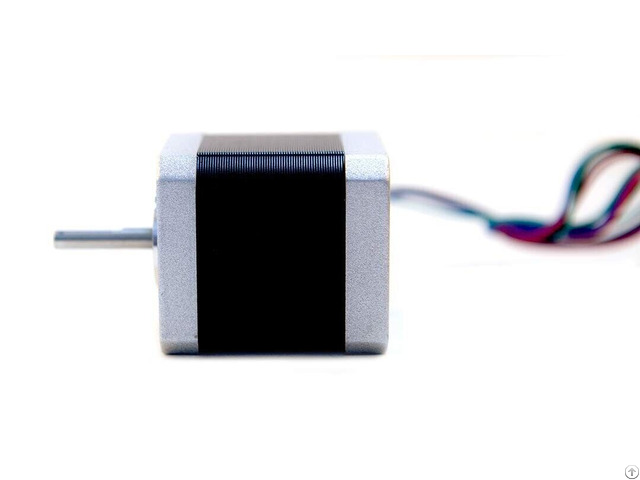

Wantai Stepper Motor 42byghw603

Products Photos Catalog Wantai Stepper Motor Photos Catalog

Wantai Stepper Motor 42BYGHW603, 400Kg.

cm, 0.4A, cnc engraver, medical equipment

Part No: 42BYGHW603Single Shaft

Frame Size: NEMA17

Step Angle: 1.8 degree

Voltage: 12VDC

Current: 0.4A/phase

Resistance: 30 Ohm/phase

Inductance: 40mH/phase

Holding torque: 4000g-cm

Rotor inertia: 54g-cm2

Detent torque: 22kg-cm

Number of wire leads: 4

Weight: 0.3KG

Length: 40mm

Front shaft diameter: 5mm

Front shaft length: 24mm round shaft

This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!


Company Contact:


  • Phone: 13815007798

  • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

  • Email: Email


Published date: April 11, 2023

  • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

    Always adhere to the people-oriented, mature production technology, complete testing equipment.
