About Electronic Component Mrfe6s9160hsr3 - China

price: 10.83 Dollar US$

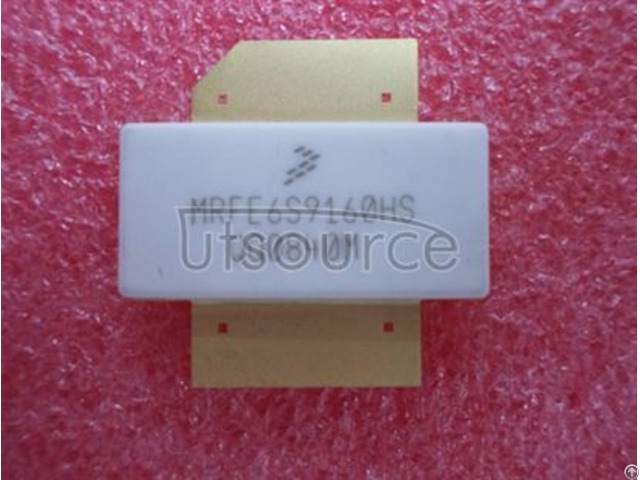

About Electronic Component Mrfe6s9160hsr3

Products Photos Catalog Electronic Component Photos Catalog

Designed for N - CDMA, GSM and GSM EDGE base station applications with frequencies from 865 to 960 MHz.

Suitable for

multicarrier amplifier applications.

0Typical Single-Carrier N-CDMA.

Performance @ 880 MHz: VDD = 28 Volts, IDQ = 1200

mA, Pout = 35 Watts Avg., IS-95 CDMA (Pilot, Sync, Paging, Traffic Codes 8 Through 13) Channel Bandwidth = 1.2288 MHz.

PAR = 9.8 dB @ 0.01% Probability on CCDF.

Power Gain — 21 dB Drain Efficiency — 31% ACPR @ 750 kHz Offset — -46.8 dBc

in 30 kHz Bandwidth Capable of Handling 10: 1 VSWR, @ 32 Vdc, 880 MHz, 3 dB Overdrive, Designed for Enhanced Ruggedness.


Company Contact:


  • Phone: 0755-23959113

  • Address: 10B2,BLOCK B,WORLD TRADE PLAZA,FUHONGA RD.,FUTIAN, SHENZHEN , guangdong , China

  • Email: Email


Published date: December 1, 2016

  • Business Description: UTSOURCE is an amazing online electronic components store，provides different types such as electronic components , passive components, arm development board, Cell Phone Repair Parts，etc., and various product types，we also provide satisfying one-stop package service for customers.
